Install left and right brake ventilation duct
Install left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.
Install the brake ventilation duct

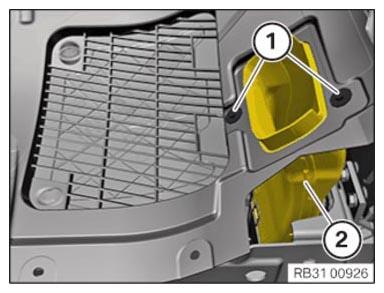

Insert and position the brake ventilation duct (2).
Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
Wheel arch cover
Thermoplastic hexagon screw
tightening torque
2.6 Nm
Plastic nut
tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
