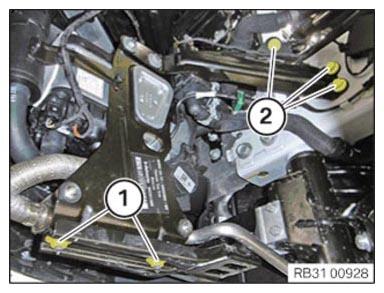

If installed: Fasten the auxiliary heater
- Position the stationary heating system.
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Holder to body M8 tightening torque 19 Nm - Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION

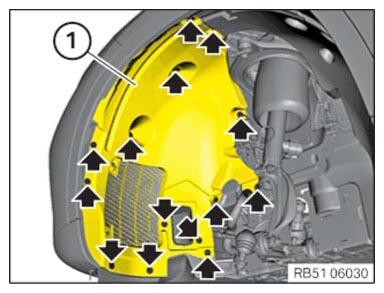

Stationary heating system to holder M8 tightening torque 19 Nm Installing the front section of the front wheel arch cover
NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Feed in the front section of the wheel arch cover (1).
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Wheel arch cover Thermoplastic hexagon screw tightening torque 2.6 Nm Plastic nut tightening torque 2.6 Nm
