Install left and right wiper arm

NOTE: Description is for left component only. Procedure on the right side is identical.

Install wiper arm

NOTE: TECHNICAL INFORMATION
The wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate wiper system 1x to ensure wiper system is in the correct installation position.

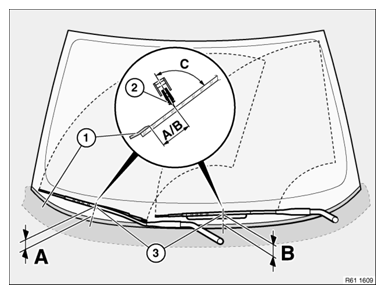

Connect the wiper arm (3).

Correctly position the wiper arm (2) in relation to the window edge (1).

TECHNICAL DATA SPECIFICATION

Distance from window pane edge to wiper blade
Wiper arm right (A)	52.6 ± 5 mm
Wiper arm left (B)	73.0 ± 4 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Replace nut.
Parts: Nut

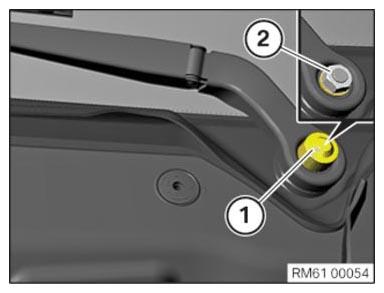

Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Windshield wiper arm
Combination hexagon nut Replace nut	Tightening torque	35 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the protective cap (1).
