Connecting the connectors on left and right

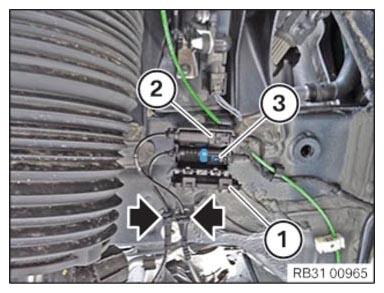

Connecting the left connector

• Secure cable to holder (arrows).
• Connect connectors (2) and (3) and lock.
• Close lid (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

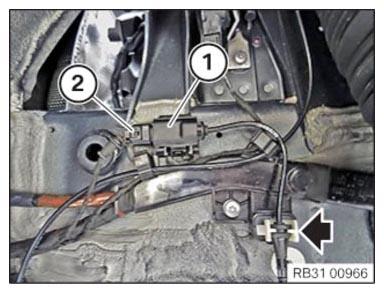

  Connecting the right connector

• Attach the cable to the bracket (arrow).
• Connect connectors (2) and lock.
• Close lid (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
