Install the left-hand and right-hand crash lever

NOTE: Perform the steps on the right and left side.

Installing crash lever

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

NOTE: TECHNICAL INFORMATION
Do not mix up the left and right!

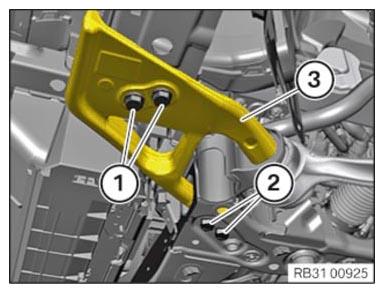

Tighten down screws (1) and (2).

TIGHTENING TORQUES SPECIFICATION

Crash lever to front subframe/frame
M12 Replace screw.	tightening torque	68 Nm
