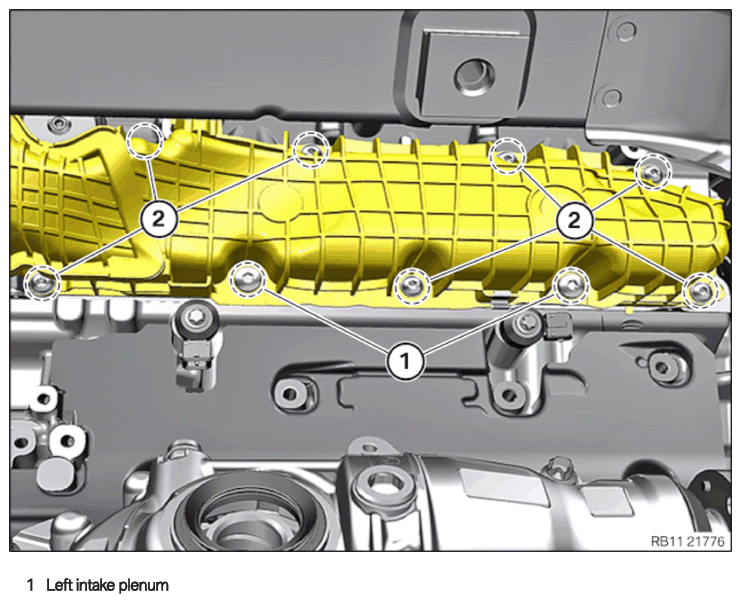

Installing the left intake plenum

Screws of the left intake plenum

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

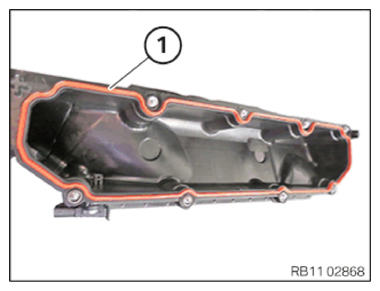

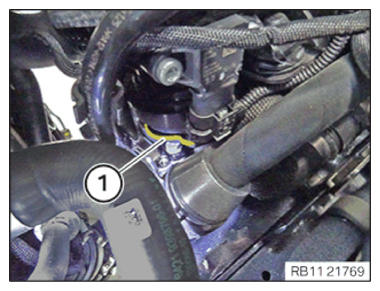

Replace the seal (1) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

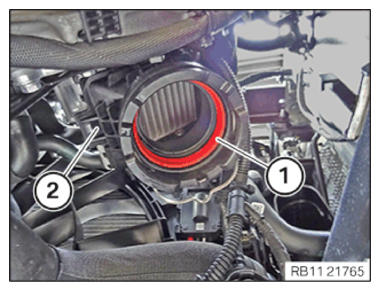

Check the seal (1) on the charge air cooler (2) for damage, replace it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

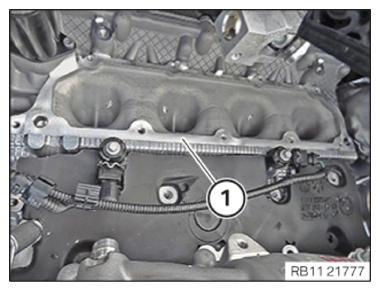

Clean sealing surface (1) with special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the intake plenum (1) .

Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M6 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M8 screw	Tightening torque	21.4 Nm

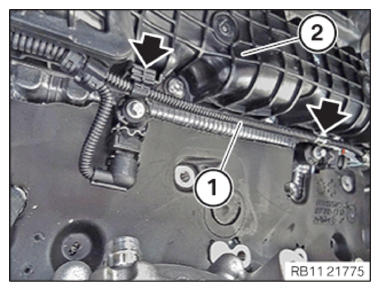

Fasten the wiring harness section (1) on the intake plenum (2) with the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

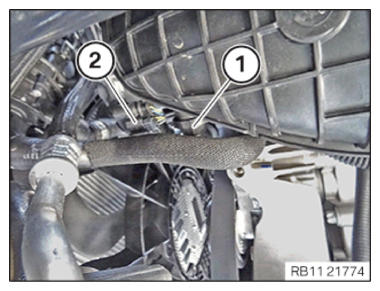

Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect and lock tank vent line (1) .
The tank vent line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

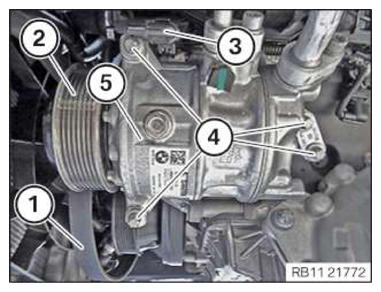

Insert and install the air conditioning compressor (5) .

Tighten down screws (4) .

TIGHTENING TORQUE SPECIFICATIONS

Air conditioning compressor to holder/engine
M8	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (3) and lock.
The connector (3) must engage audibly.
Position the drive belt (1) on the belt pulley (2) of the air conditioning compressor (5) .

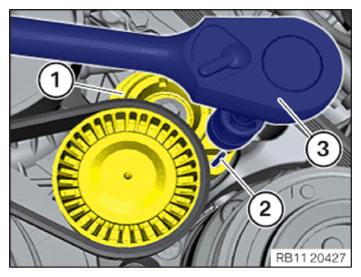

Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3) .
Remove the special tool 0 496 268 (11 0 390)(2) from the belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

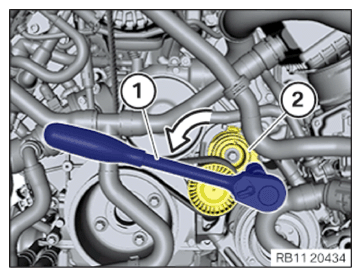

Loosen the belt tensioner (2) counterclockwise using a suitable socket wrench (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

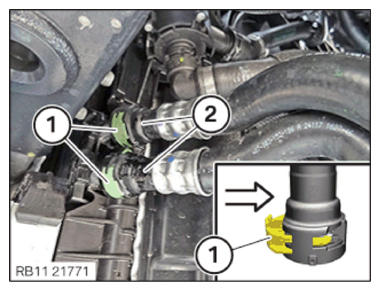

Connect the transmission oil lines (2) .
Lock the locks (1) in the arrow direction.
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

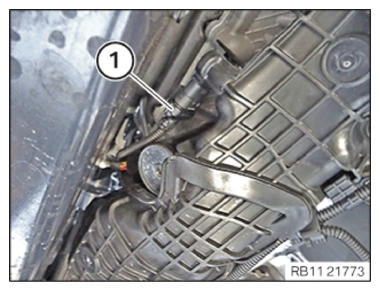

Lock clamp (1) .
Clamp (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LEFT ENGINE SUPPORT BRACKET .
Refer to INSTALLING FRONT AXLE .
Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
Refer to SECURING THE SWIVEL BEARING, LEFT AND RIGHT .
Refer to REMOVING THE MOBILE LIFTING TABLE .
Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
Refer to REMOVING BEARING BRACKET .
Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
Refer to ATTACHING THE WIRING HARNESS TO THE ACTIVE ANTI-ROLL BAR .
Refer to FASTENING THE WIRING HARNESS TO THE EPS .
Refer to IF INSTALLED: FASTENING THE AUXILIARY HEATER .
Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to INSTALLING THE LEFT-HAND AND RIGHT-HAND CRASH LEVER .
Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
Refer to INSTALLING REINFORCEMENT STRUT .
Refer to REMOVING THE COMBUSTION ENGINE FROM THE INSTALLATION POSITION (INTAKE FILTER HOUSING REMOVED) .
Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to INSTALLING THE DOOR SILL LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
