Installing starter motor
- Before installation of the starter motor, check the starter motor pinion and starter motor ring gear for damage
- If necessary, replace damaged components.

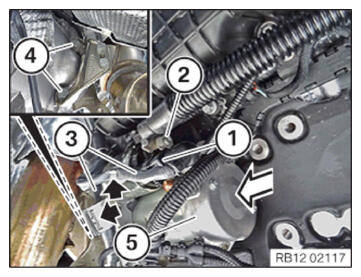

- Maneuver and install starter motor (5) in the arrow direction.
- Tighten down screws (4)
.TIGHTENING TORQUE SPECIFICATIONS
Starter motor to transmission M10x65 Tightening torque v - Secure the cables (3) to the clamps (arrows).
- Feed in and install positive battery cable.
- Tighten nut (2)
.TIGHTENING TORQUE SPECIFICATIONS
Battery positive lead to starter M8 Tightening torque 15 Nm - Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE RIGHT ENGINE MOUNTING BRACKET .
- Refer to REPLACING THE DRIVEN SHAFT OR CIRCLIP .
- Refer to REPLACING THE RADIAL SHAFT SEAL .
- Refer to INSTALLING LEFT OUTPUT SHAFT .
- Refer to DRAIN/TOPPING UP THE FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING SPRING SUSPENSION STRUT .
- Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
- Refer to FASTENING THE BRAKE HOSE AND THE CABLE .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to RAISING THE FRONT SUBFRAME .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
- Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
- Refer to SECURING LEFT AND RIGHT SPRING STRUT HOLDERS ON THE LOWER WISHBONE .
- Refer to FASTENING THE BRAKE HOSE AND THE CABLE ON THE LEFT AND RIGHT .
- Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE WIRING HARNESS TO THE ACTIVE ANTI-ROLL BAR .
- Refer to FASTENING THE WIRING HARNESS TO THE EPS .
- Refer to IF INSTALLED: FASTENING THE AUXILIARY HEATER .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT-HAND AND RIGHT-HAND CRASH LEVER .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT WHEEL ARCH TRIM ON THE DOOR SILL (PARTIALLY REMOVED) .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COMBUSTION ENGINE FROM THE INSTALLATION POSITION (INTAKE FILTER HOUSING REMOVED) .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE DOOR SILL LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
