Securing left and right spring strut holders on the lower wishbone
NOTE:
Perform the steps on the right and left side.
Fasten the spring strut holder on the bottom wishbone
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

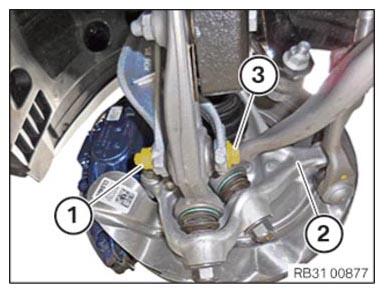

- Position spring strut holder on the bottom wishbone.
- Replace the screw (3) and the nut (1).
Parts: Bolt and nut
- Punch in the swivel bearing (2) at the front towards the inner.
- Insert screw (3).
- Tighten the nut (1) in the NORMAL POSITION
.TIGHTENING TORQUES SPECIFICATION
Spring strut holder to lower wishbone M14
Replace screw and nut.
Tighten in normal position.Snug torque 165 Nm Angle of rotation 90°
