Replacing the driven shaft or circlip
NOTE:
TECHNICAL INFORMATION
If the driven shaft is reused, the circlip must be replaced.
If the driven shaft is reused, the circlip must be replaced.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
- Check the gearing of the driven shaft for damage and, if necessary, replace the damaged parts.

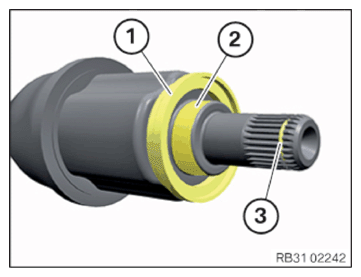

- Check the dust plate (1) for damage and, if necessary, replace the damaged parts.
- If the driven shaft is reused, then replace the circlip (3) .
- Wet contact surface (2)
with the approved front differential oil.
