Installing automatic transmission (all-wheel drive vehicle) (GA8HP76Z)

Checking installation position of torque converter

Courtesy of BMW OF NORTH AMERICA, INC.

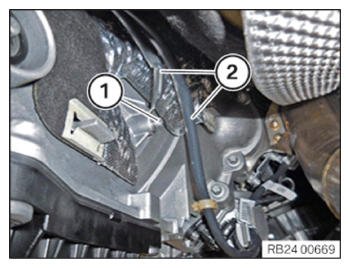

• Check the installation dimension between the contact surfaces (1) and the outer edge (2) of the threaded hole of the torque converter with the special tool 0 490 189 (00 2 550).

  See repair instructions: REMOVING AND INSTALLING/REPLACING TORQUE CONVERTER .

Courtesy of BMW OF NORTH AMERICA, INC.

• Align the automatic transmission horizontal to the engine before installation.
• Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

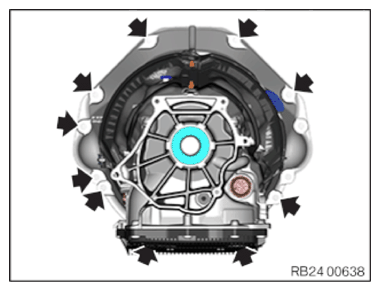

• Transmission flange-mount.
• Turn the torque converter until its hole is aligned with the hole of the flywheel.
• Fit the transmission bolts (arrows) and apply hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

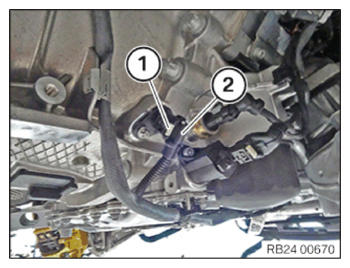

• Loosen screw (1) and screw (2).
• Remove the special tool 0 494 451 (24 4 160).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws.

  Parts:  Screws

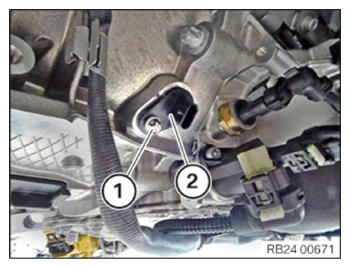

• First  screw the torque converter onto the vertically arranged elongated hole (1).

  It is imperative to first screw the torque converter on the vertically arranged elongated hole (1).

• Turn the engine on the vibration damper in direction of rotation until the elongated hole (1) is visible in the opening.
• Tighten down screw.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Torque converter to flywheel
  M10 Replace screws.	tightening torque	60 Nm

• Observe the tightening sequence of the additional five screws (torque converter on flywheel) compulsorily:

  Tightening sequence: 1 - 4 - 3 - 6 - 5 - 2

  The screw connection (1) is the vertically arranged elongated hole in the torque converter.

  TIGHTENING TORQUE SPECIFICATIONS



  Torque converter to flywheel
  M10 Replace screws.	tightening torque	60 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the sealing cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool 0 494 213 (24 2 390) from the sealing sleeve in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide connector (1) in the arrow direction and lock it by turning it.
• Tighten the transmission bolts (arrowed).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission to engine
  M8	tightening torque	19 Nm
  M10	tightening torque	38 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

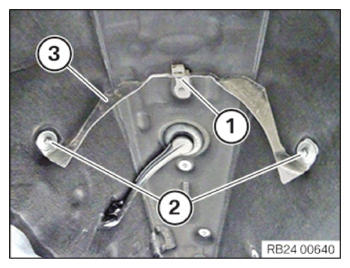

• Install heat shield (3).
• Tighten the nuts (2) and screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Heat shield of tunnel
  	tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace sealing rings.

  Parts:  Sealing ring

• Install hydraulic lines (1) on transmission.
• Position and tighten the screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil line to transmission
  M6x25 Replace the sealing ring.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install hydraulic lines (2) on transmission.
• Position and tighten the screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil line on holder
  M6	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the lines (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Standard screw connection
  M5	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the sensor (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Standard screw connection
  M5	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (2) to the sensor.
• Lock the connector fastener (1) audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the heat shield (2).
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
