Installing the heat shields
Installing the heat shields

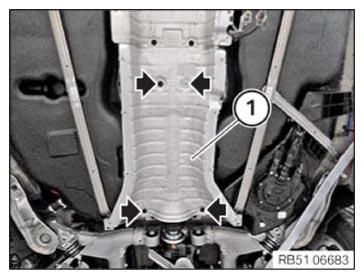

Install heat shield
(1)
.
Tighten screws (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.

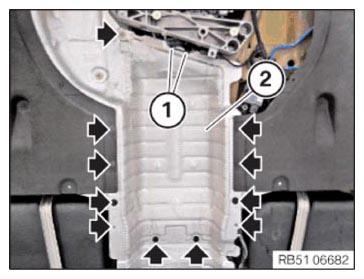

Install heat shield
(2)
.
Tighten nuts and screws (arrows).
Secure clamps
(1)
(B57).
Courtesy of BMW OF NORTH AMERICA, INC.
