Installing oil filler neck

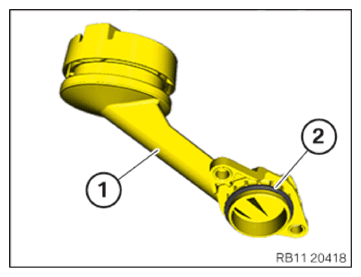

• Replace the sealing ring (2) on the oil filler neck (1).

  Parts:  Sealing ring

• Coat the sealing ring (2) with the recommended engine oil.
  ENGINE OIL SPECIFICATION



  Technically suitable engine oils for BMW Group engines

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position oil filler neck (1).

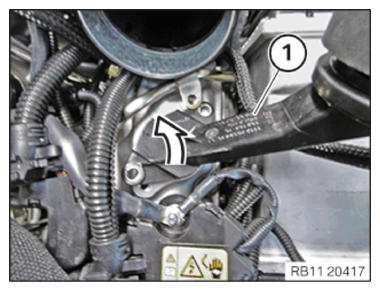

• Turn oil filler neck (1) about 15° counterclockwise.

  Courtesy of BMW OF NORTH AMERICA, INC.

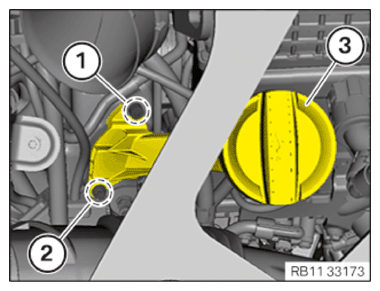

• Tighten screw (2) on the oil filler neck (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Oil filler neck
  M6x18	tightening torque	10 Nm

• Tighten screw (1) on the oil filler neck (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
