Installing front propeller shaft at the front axle transmission

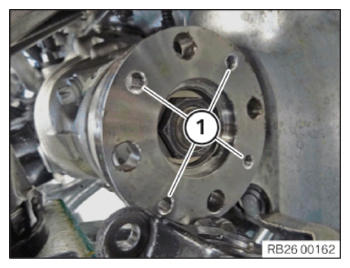

- Before installing the prop shaft on the front axle transmission, all the 4 threads (1)
in the drive flange must be cleaned and free from possible residues and contaminations.
- Replace screws.
Parts: Screws

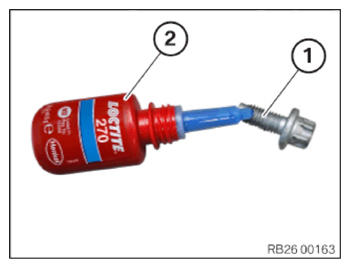

- A drop of Loctite 270 (2) must be given before the screw connection on each thread at the end of the respective screw (1) .
CONSUMABLE SPECIFICATION
| High-strength screw lock, Loctite 270 | 10 ml, Tube | 83 19 2 210 337 |
NOTE:
TECHNICAL INFORMATION
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.

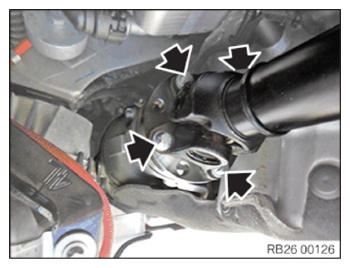

- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Prop shaft before the front axle differential | ||
|---|---|---|
| Replace screws. Joining torque and angle of rotation must be observed without fail. |
Tightening torque | 25 Nm |
| Angle of rotation | 45° | |
Follow-up work
- Refer to INSTALLING THE TRANSFER BOX (ATC 13-1) .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1) .
- Refer to INSTALLING THE AIR DUCT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR LEFT AND RIGHT TENSION STRUT .
- Refer to INSTALLING THE STIFFENING PLATE .
