Checking/Topping up the transfer box oil (Active Torque Control 13-1)
NOTE:
RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
- Use only the BMW approved transmission oil. See the Fluid Capacities tab for the selected vehicle.
- Check the transmission oil level after completing the repair.
- Open the oil filler plug (1).
- Check the transmission oil level on the transfer box (VTG).

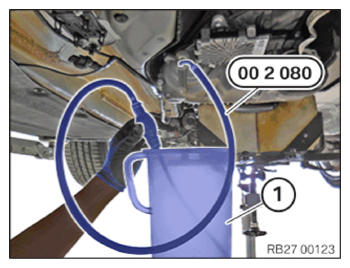

- If necessary, top up transmission oil with the special tool 0 493 337 (00 2 080) up to the lower edge of the opening for the oil filler plug.
TECHNICAL DATA SPECIFICATION
| Filling capacity of transfer box | |
|---|---|
| Transfer-box oil | min. 0.7 L |
- Replace the oil filler plug (1).
Parts: Oil filler plug
- Tighten the oil filler plug (1).
TIGHTENING TORQUE SPECIFICATIONS
| Oil filler and oil drain plugs | ||
|---|---|---|
| M22 | tightening torque | 60 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE AIR DUCT .
