Install bracket for right intake silencer

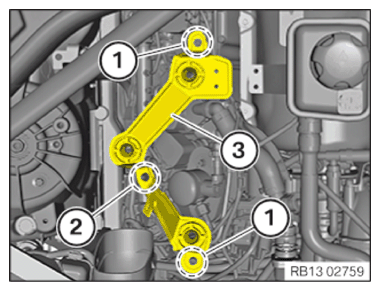

- Position holder (3) of the intake silencer on right.
- Tighten nut (2)
.TIGHTENING TORQUES SPECIFICATION
Nut on the holder of intake silencer Nut M6 tightening torque 8 Nm - Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION

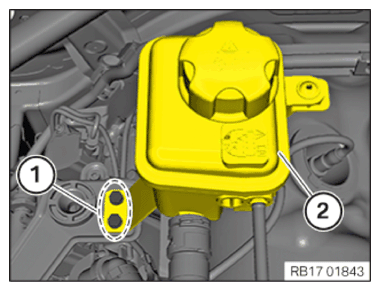

Screw on the holder of the intake silencer M6x16 screw Tightening torque 8 Nm - Position expansion tank (2) of the low temperature coolant circuit with holder.
- Tighten the screws in this area (1)
.TIGHTENING TORQUES SPECIFICATION

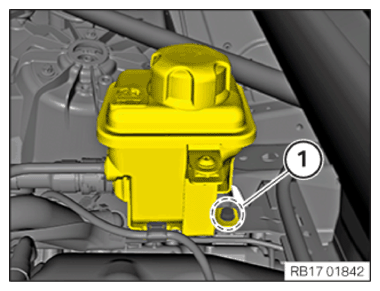

Holder of the expansion tank for low temperatures to holder of the intake filter housing Screw M6x16 tightening torque 10 Nm - Tighten bolt (1)
on holder of the expansion tank of the low temperature coolant circuit.TIGHTENING TORQUES SPECIFICATION
Holder of the expansion tank for low temperatures to holder of the crossing of the transmission wiring harness Screw M6x16 tightening torque 10 Nm
