Fastening the engine ventilation line of cylinder bank 1

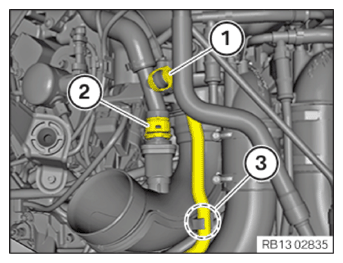

Clip in the tank vent line (1) in the area (2) in the holder on the clean air pipe.
Connect and lock the tank vent line (1) .
Connect and lock the engine ventilation line of the cylinder bank 1 (2) .
Retaining clip must lock in place audibly.
