Installing the rear left and right tension strut
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the rear tension strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

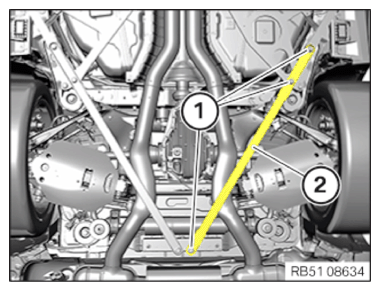

- Install tension strut (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Tension strut to holder/reinforcement strut | ||
|---|---|---|
| M12x25 screw Replace screws. |
Joining torque | 100 Nm |
| Angle of rotation | 90° | |
