Install the transfer box (ATC 13-1)

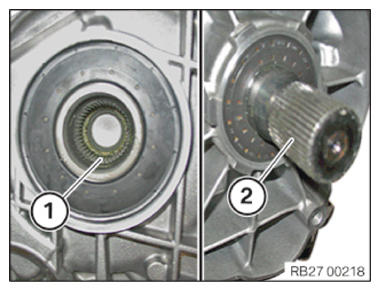

• Lightly grease the gearing (1) in the transfer box (VTG) and the gearing (2) of the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

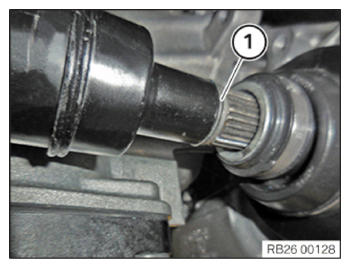

• Replace the O-ring (1) before installing the front prop shaft in the transfer box (VTG).

  Parts:  O-ring

• Apply a thin coat of grease to the gearing of the output flange in the transfer box (VTG).

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the transfer box (VTG) with the help of a support person.

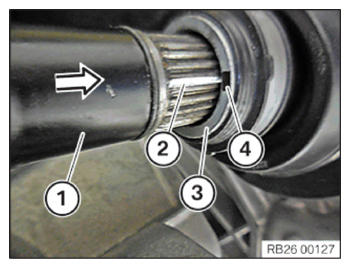

• Position the front prop shaft (1) on the output flange (3) of the transfer box (VTG).
• Align the front prop shaft (1) with the help of the marks (2) and (4).
• Install the transfer box (VTG) and, at the same time, slide the front prop shaft (1) into the output flange (3) of the transfer box (VTG).
• Remove any leaked grease on the prop shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

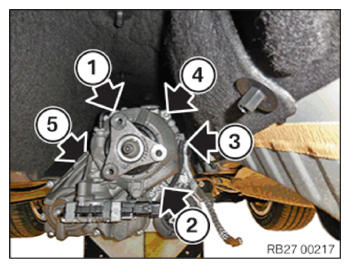

• Tighten the screws in order from (1) to (5).
  TIGHTENING TORQUE SPECIFICATIONS



  Transfer box to automatic transmission
  M10	tightening torque	43 Nm

  Fig 1: Transfer Box Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

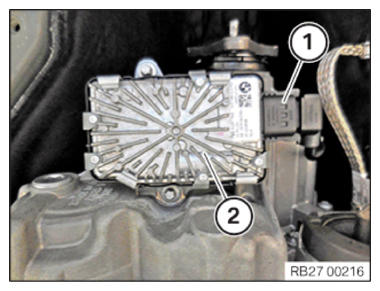

• Connect the connector (1) on the VTG control unit (longitudinal torque distribution) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

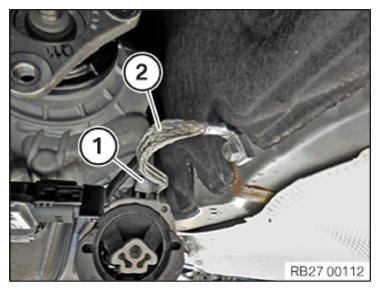

• Install the ground strap (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1) .
• Refer to INSTALLING THE AIR DUCT .
• Refer to INSTALLING THE HEAT SHIELDS .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT TENSION STRUT .
