Install the connecting supports on the tunnel

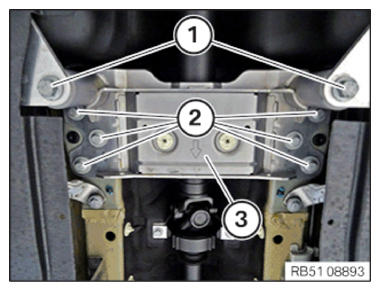

- Position connecting support (3) on tunnel.
- Replace screws (2)
.
Parts: Screws
- Tighten the screws (2)
.TIGHTENING TORQUES SPECIFICATION
Connecting support on tunnel to body Hexagon screw
M10x25
Replace screwsJoining torque 56 Nm Angle of rotation 90° - Replace screws (1)
.
Parts: Screws
- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION
Rear reinforcement strut to the stiffening girder M12x25 screw
Replace screwsTightening torque 100 Nm Angle of rotation 90°
