Installing transmission cross member
- Install the transmission cross member (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission cross member to rubber mounts M12 tightening torque 68 Nm - Tighten the screws (2).TIGHTENING TORQUE SPECIFICATIONS
Transmission cross member to body M8 tightening torque 19 Nm - Remove the transmission jack.
- Install the line.

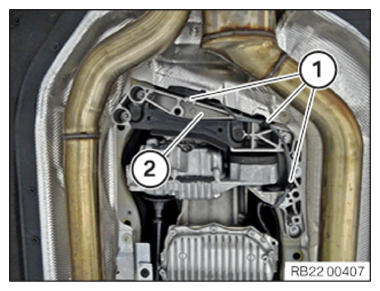

- Fasten the line with the clamps (1) to the transmission cross member (2).
