Tightening the VANOS central valve of the intake adjuster

• Have the special tool 0 496 855  ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Have the special tool 2 450 487 ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

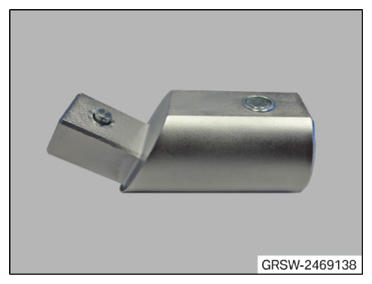

• Have the special tool 2 469 138 ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

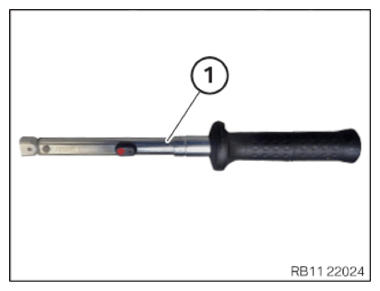

• Keep a standard torque wrench (1)  ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

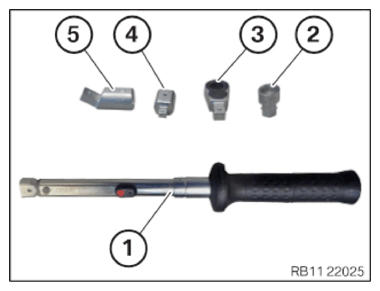

• Have all the special tools and standard tools ready.

  Number	Description
  1	Standard torque wrench
  2	Wrench socket set 2 450 487
  3	Reversible ratchet 0 496 855
  4	Commercially available reduction
  5	adapter2 469 138

  Courtesy of BMW OF NORTH AMERICA, INC.

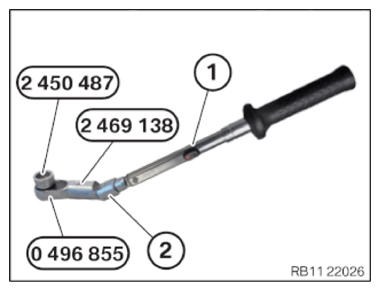

• Assemble all the special tools and standard tools as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

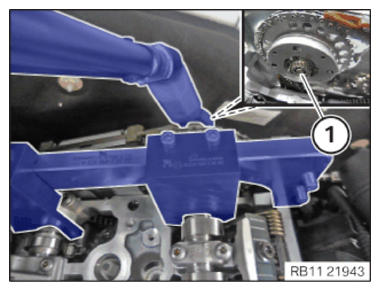

• Tighten the VANOS central valve (1)  of the intake adjuster.

Courtesy of BMW OF NORTH AMERICA, INC.
