Fastening the auxiliary coolant pump for the exhaust turbocharger
Fastening the auxiliary coolant pump for the exhaust turbocharger

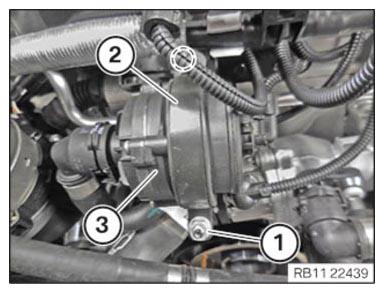

Insert the auxiliary coolant pump (3) and position it
Insert the retaining bracket (2) in the
marked
area and install it.
Tighten nut (1).
TIGHTENING TORQUE SPECIFICATION
Auxiliary coolant pump holder to cylinder head
M6
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
