Installing all spark plugs
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

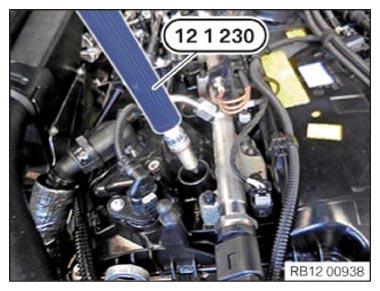

- Insert spark plug (1) in the special tool 0 496 065 (12 1 230) .
NOTE:
TECHNICAL INFORMATION
Do not drop the spark plug into the spark plug shaft. This can lead to a reduction of the electrode gap and can thus impair smooth running of the engine, especially in idle position.
Do not drop the spark plug into the spark plug shaft. This can lead to a reduction of the electrode gap and can thus impair smooth running of the engine, especially in idle position.
- Screw the spark plugs into the engine hand-tight with the special tool 0 496 065 (12 1 230) .
NOTE:
TECHNICAL INFORMATION
Only a swiveling extension for the reversible ratchet may be used. Rigid mounting tool and variable plug connections with rigid option may not be used; there is a risk that the insulator breaks.
Only a swiveling extension for the reversible ratchet may be used. Rigid mounting tool and variable plug connections with rigid option may not be used; there is a risk that the insulator breaks.
- Tighten the spark plugs with the torque wrench, the special tool 0 495 560 (12 1 220) and with a pivotable extension.
TIGHTENING TORQUES SPECIFICATION
| Spark plugs | ||
|---|---|---|
| M12x1.25 | Tightening torque | 23 Nm |
Follow-up work
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
