Installing the rear hood seal
Installing the rear hood seal

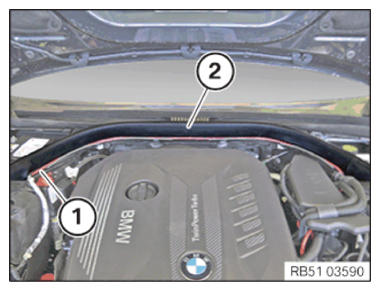

Press the rear hood seal (2) into the guide.
Guide cable (1) into the holders.
Check if the rear hood seal (2) and the cable (1) fit correctly.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
