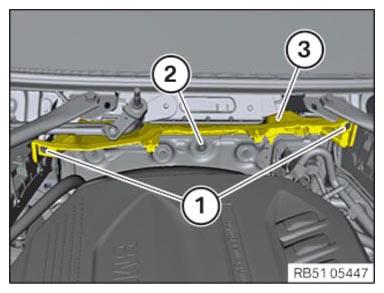

Install the second end panel underneath
- Feed in and add the second panel (3) underneath.
- Tighten the screws (1) and the nut (2).
TIGHTENING TORQUE SPECIFICATION
| Firewall lower part |
| Hexagon screw |
Tightening torque |
3 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
