Fastening the charge air crossing

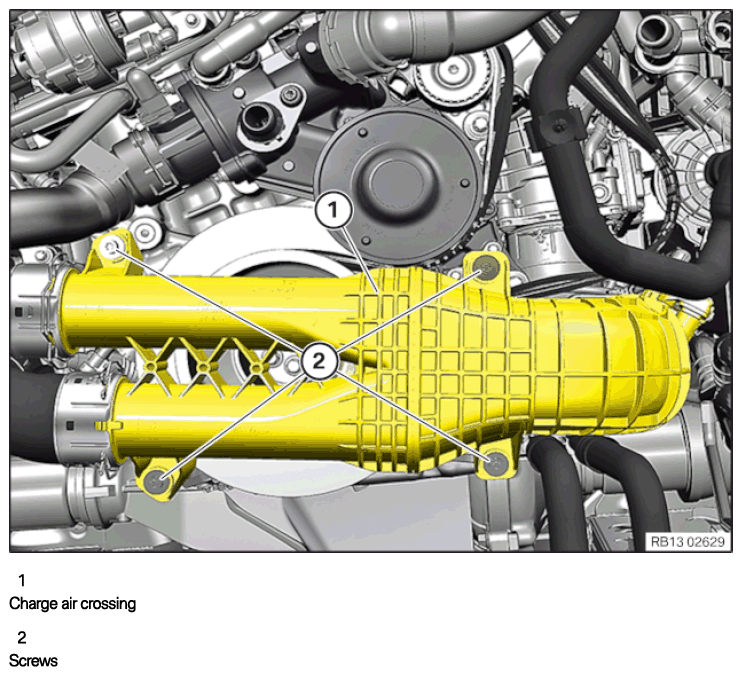

Charge air crossing

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

Fan cowl removed.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

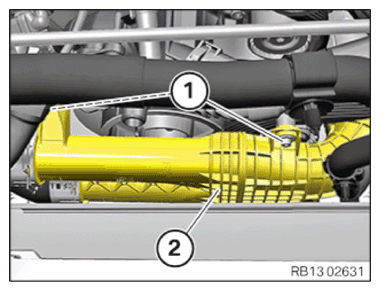

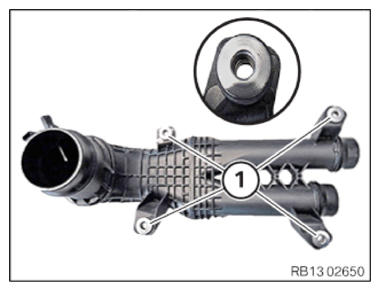

Ensure that guide sleeves (1) are present and have been installed correctly

Courtesy of BMW OF NORTH AMERICA, INC.

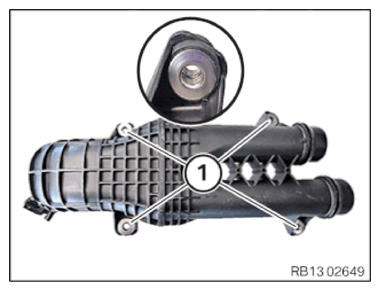

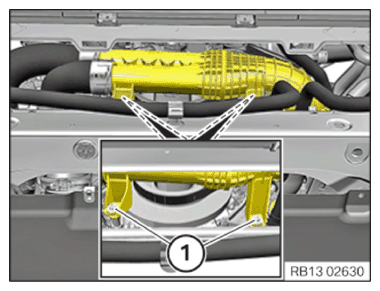

Ensure that guide sleeves (1) are present and have been installed correctly

Courtesy of BMW OF NORTH AMERICA, INC.

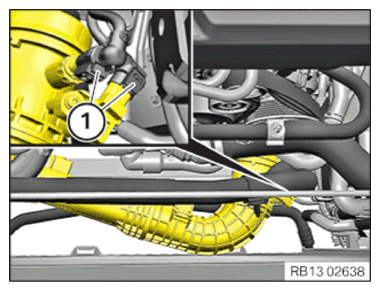

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

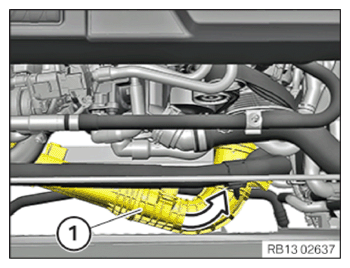

Insert and install the charge air crossing (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

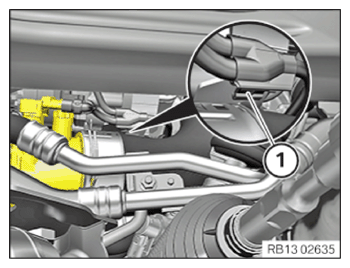

Secure the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

NOTE: TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Remove damaged seal.
Clean the gasket groove (1) with a dry cloth.
The gasket groove (1) must be clean.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket.
Parts: Seal

Parts: Seal
Install the seal dry without lubricant or mounting agent.
NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in seal and install.
Make sure that the seal is installed correctly in the gasket groove (1).
Make sure that the sealing lip (2) is directed to the inside as shown.
Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

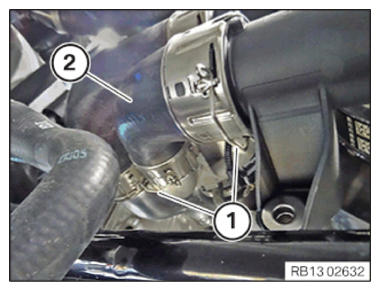

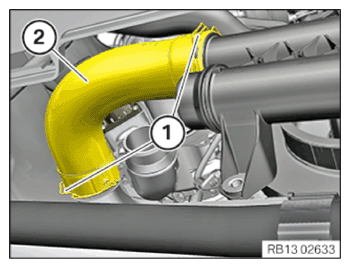

Connect the charge air crossing (2) to the charge air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

NOTE: TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Remove damaged seal.
Clean the gasket groove (1) with a dry cloth.
The gasket groove (1) must be clean.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket.
Parts: Seal

Parts: Seal
Install the seal dry without lubricant or mounting agent.
NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in seal and install.
Make sure that the seal is installed correctly in the gasket groove (1).
Make sure that the sealing lip (2) is directed to the inside as shown.
Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

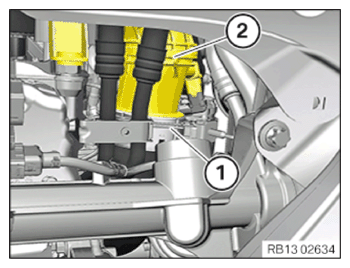

Insert and install the charge air duct for cylinders 4-6 (2).
Ensure that clamps (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

NOTE: TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Remove damaged seal.
Clean the gasket groove (1) with a dry cloth.
The gasket groove (1) must be clean.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket.
Parts: Seal

Parts: Seal
Install the seal dry without lubricant or mounting agent.
NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in seal and install.
Make sure that the seal is installed correctly in the gasket groove (1).
Make sure that the sealing lip (2) is directed to the inside as shown.
Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the charge air duct for 1 - 3 cylinders (2).
Ensure that clamps (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the charge air crossing (2) and position it.
