Fuel System -- Repair (F98)
>>
13 71 Intake Silencer
>>
13 71 173 Removing and installing/replacing the air duct on the right
>>
Installing right air duct
Installing right air duct
Feed in right air duct (1) and install.
Courtesy of BMW OF NORTH AMERICA, INC.

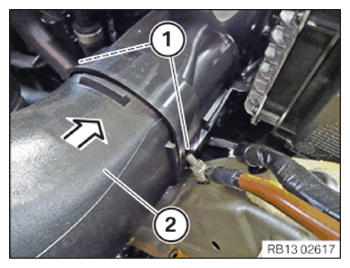

Feed in and install the right air duct (2) in direction of arrow.
The clamps (1) must engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.
Feed in right air duct (2) and connect.
Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATION
Air line to intake filter housing
cl.
tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
