Installing windshield panel cover

NOTE: TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.

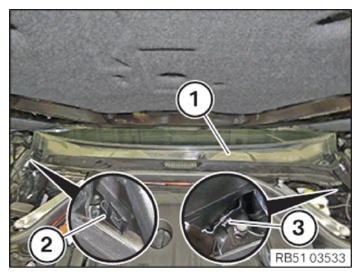

Press cowl cover (1) into the upper detent, starting from the side.
Snap in cowl cover (1) into detents (2) and (3) .

G14195309

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
