Installing cylinder head cover

Bolts of the cylinder head cover

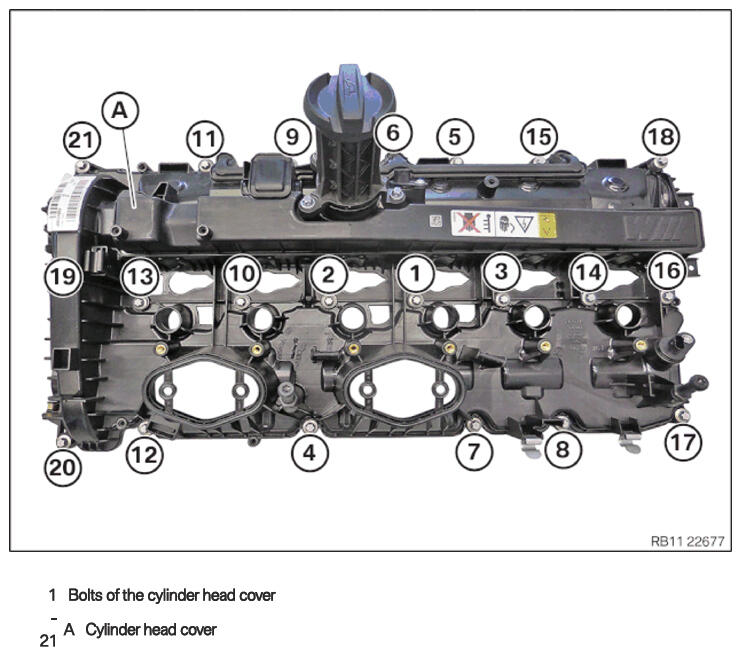

Fig 1: Cylinder Head Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

There must be no oil or grease on sealing surface (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

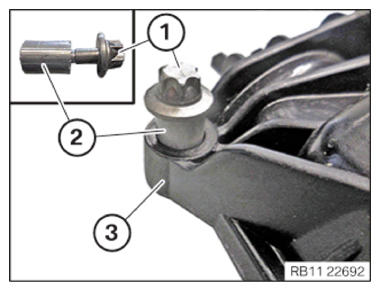

Replace the screws (1) and sleeves (2) on the cylinder head cover (3) .
Parts: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

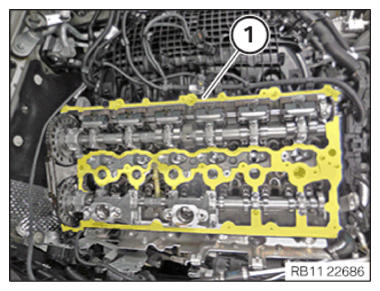

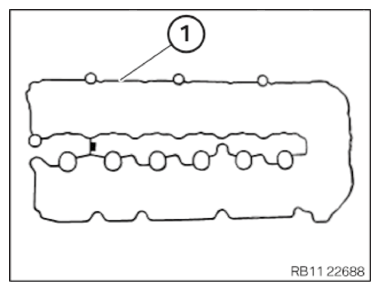

Replace gasket (1) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

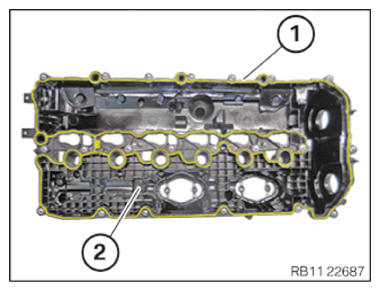

Feed in and install the seal (1) on the cylinder head cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

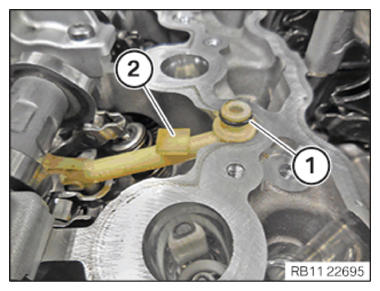

Check the sealing ring (1) on the oil return line (2) for damage.
If necessary, replace the oil return line (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

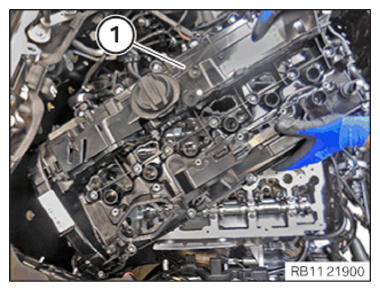

Insert and install the cylinder head cover (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the cylinder head cover (1) is installed correctly in the marked area on both high pressure pump brackets (2) .
The cylinder head cover (1) must not rest on both high pressure pump brackets (2) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Fig 2: Cylinder Head Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

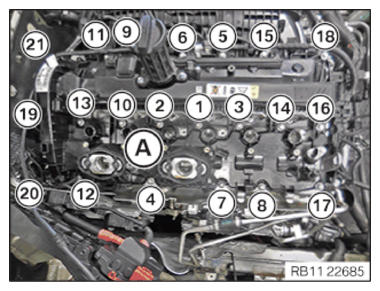

Tighten all the screws in the sequence (1) to (21) on the cylinder head cover (A) .

TIGHTENING TORQUES SPECIFICATION

Cylinder head cover to cylinder head
M6 Replace screws.	Joining torque	4 Nm

Tighten all the screws in the sequence (1) to (21) on the cylinder head cover (A) .

TIGHTENING TORQUES SPECIFICATION

Cylinder head cover to cylinder head
M6	Angle of rotation	90°

Feed in and install the holder (3) for the differential pressure sensors.

Tighten the screws (2) .

TIGHTENING TORQUES SPECIFICATION

Holder, positive battery cable to cylinder head cover
Self-tapping plastic screw 6 x 18	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

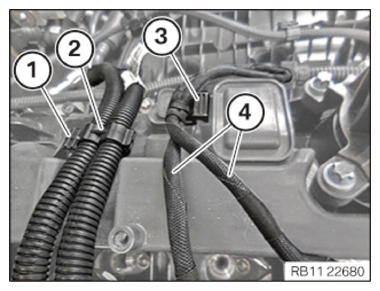

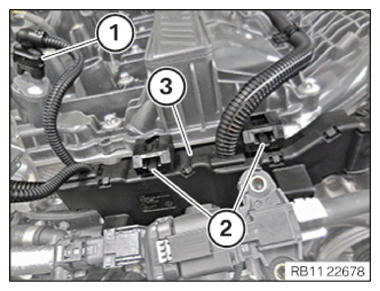

Secure clamps (1) .
Feed in and install the wiring harness section (2) for the injectors and the ignition coils.
Secure the clamp (1) .
Feed in and install the wiring harness section (4) for sensor system 2.
Secure clamps (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

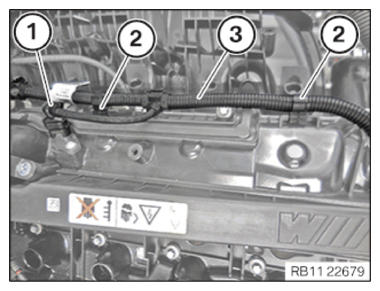

Feed in and install the wiring harness section (3) for sensor system 2.
The locks (2) must engage audibly.
Connect and lock the connector (1) to the exhaust camshaft sensor.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

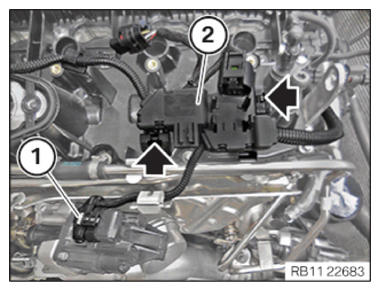

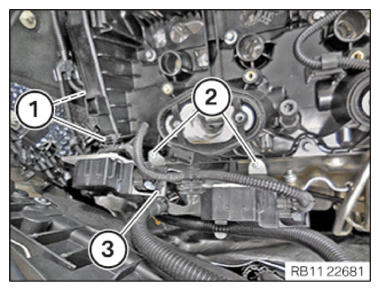

Feed in and install the wiring harness section (2) for sensor system 2.
The locks (arrows) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

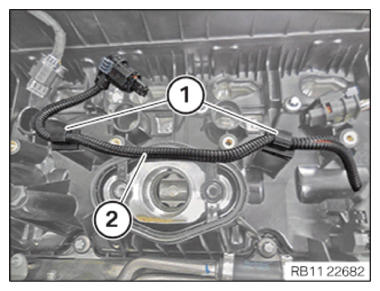

Feed in and install the wiring harness section (2) for sensor system 2.
Secure clamps (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) for sensor system 2.
Secure clamps (2) .
Connect and lock the connector (1) on the intake camshaft sensor.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
