Install fan cowl

Remove guard for the cooler fins

• Remove guard (1).

Courtesy of BMW OF NORTH AMERICA, INC.

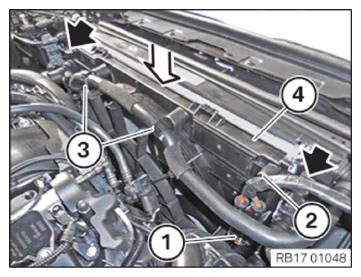

• Maneuver the fan cowl (4) in the arrow direction and install it.
• Lock the left and right locks (arrows).
• Pin up connector (1) and lock audibly.
• Attach clip (2) to fan cowl.

  Courtesy of BMW OF NORTH AMERICA, INC.

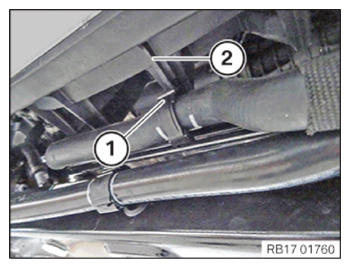

• Secure the clamp (1) on the fan cowl (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

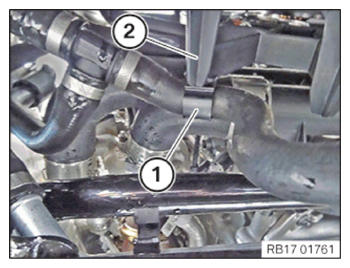

• Secure the clamp (1) on the fan cowl (2).

Courtesy of BMW OF NORTH AMERICA, INC.

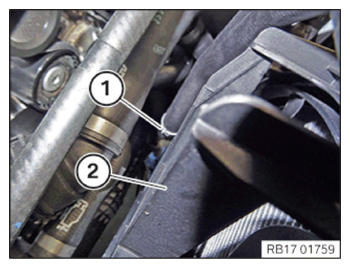

• Secure the clamp (1) on the fan cowl (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER PANEL OF THE ENGINE COMPARTMENT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
