Installing all ignition coils
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
Install ignition coil
- Feed in and install the ignition coil (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Ignition coil | ||
|---|---|---|
| Screw | Tightening torque | 8 Nm |

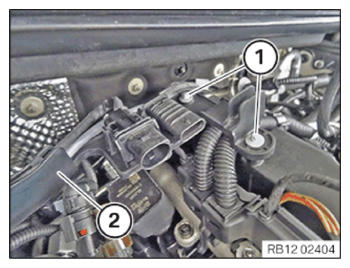

- Guide in and position the cable holder (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Oxygen sensor bracket to cylinder head cover | ||
|---|---|---|
| Self-tapping screw M6 |
Tightening torque | 5.5 Nm |

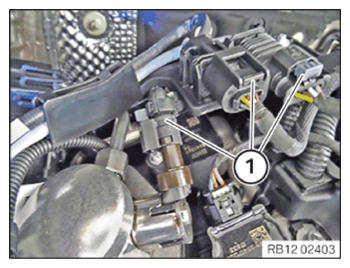

- Connect connectors (1) and lock.
The connectors (1) must engage audibly.

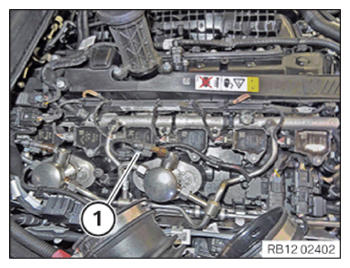

- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
