Install the rear top cross connection

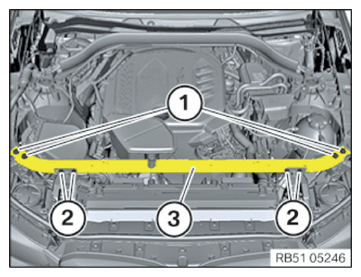

• Feed in and position the rear top (3) cross connection.
• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Rear cross connection at the top of the hood lock support
Hexagon screw M6x20	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Rear top cross connection to wheel arch carrier support
M10x50 screw Replace screw.	Snug torque	56 Nm
	Angle of rotation	90°
