Refitting engine oil pan

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fine seal remains on the sealing surface (1) of the oil pan with the special tool 0 495 102 (11 4 470) .

Clean the sealing surface (1) with brake cleaner.

CONSUMABLE DESCRIPTION

Brake cleaner 2.0	500 ml, Spray can	83192365214
	20, Canister	83192365215

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rough seal remains on the sealing surface (1) of the crankcase with the special tool 0 495 102 (11 4 470) .

Clean the sealing surface (1) with brake cleaner.

CONSUMABLE DESCRIPTION

Brake cleaner 2.0	500 ml, Spray can	83192365214
	20, Canister	83192365215

Have the special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) .

Position the sealing compound (1) as shown on the special tool 2 469 803 .

Parts: Sealing compound

SEALING COMPOUND SPECIFICATIONS

Loctite 5970 liquid sealing compound
Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

Apply the sealing compound (1) along the line with a height of 2 mm to 2.5 mm.
Apply the sealing compound along the inner edge.
Completely encircle the oil return orifice (arrow) with the sealing compound.
NOTE: TECHNICAL INFORMATION
The special tool 11 8 780 is only required when the transmission is removed.
Position the special tool 0 496 120 (11 8 780) with the transmission bolts (1) so that the oil pan is exactly flush with crankcase.
If necessary, replace lining sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Improper screw length can cause component damage .
The use of screws of improper length can lead to component damage .
- Note the correct screw length.
- Install screws that correspond to the original length.
Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the correct (2) screw (M8 x 40) is used to attach the oil pan to the transmission.
The (1) screw (mounting bolt of the starter) must never be used to attach the oil pan.
Insert and install oil pan (1) to top front.
Tighten all bolts of the oil pan (1) hand-tight , do not tighten completely.

Courtesy of BMW OF NORTH AMERICA, INC.

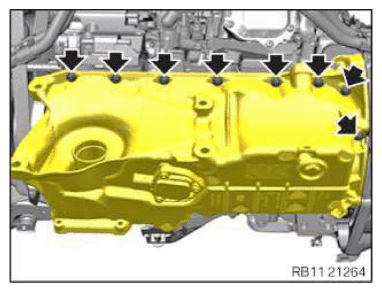

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Oil sump to crankcase
M8x30	Tightening torque	24 Nm
M8x110	Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

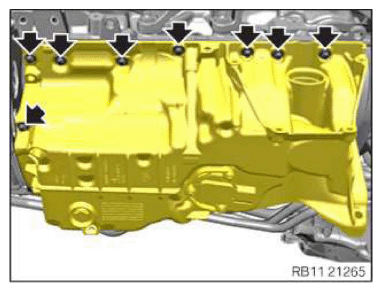

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Oil sump to crankcase
M8x30	Tightening torque	24 Nm
M8x110	Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

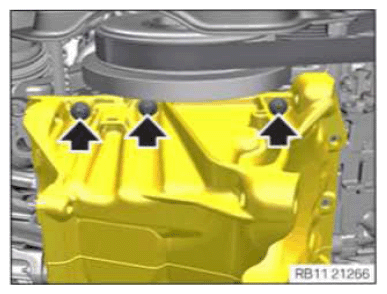

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Oil sump to crankcase
M8x30	Tightening torque	24 Nm
M8x110	Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten transmission screws (1) .

TIGHTENING TORQUE SPECIFICATION

Transmission to oil pan (manual transmission and automatic transmission)
M8x50	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten transmission screws (1) .

TIGHTENING TORQUE SPECIFICATION

Transmission to oil pan (manual transmission and automatic transmission)
M8x50	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

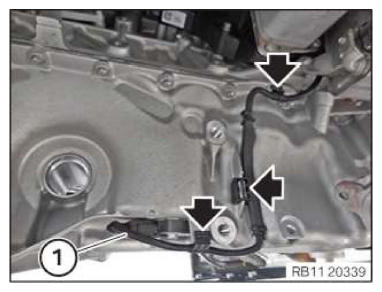

Secure the clamps (arrows).
Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING BEARING BRACKET .
Refer to INSTALLING FRONT AXLE DIFFERENTIAL .
Refer to REPLACING THE LEFT AND RIGHT RADIAL SHAFT SEAL .
Refer to SECURING THE JUNCTURE SHAFT IN FRONT ON THE FRONT AXLE DIFFERENTIAL .
Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
Refer to INSTALLING FRONT AXLE SUPPORT .
Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
Refer to ATTACHING THE RIGHT AND LEFT OUTPUT SHAFT ONTO THE WHEEL BEARING .
Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
Refer to ATTACHING THE LEFT AND RIGHT TENSION STRUTS ON THE SWIVEL BEARING .
Refer to ATTACHING THE LEFT AND RIGHT WISHBONE ON THE SWIVEL BEARING .
Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
Position the line.
Clip the line into the bracket (2).

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALLING ALL IGNITION COILS .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING THE SIDE PANEL SEAL .
Refer to INSTALLING THE LATERAL HOOD SEALS .
Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to INSTALLING CONTROL UNIT BRACKET .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to TOPPING UP THE MOTOR OIL .
Refer to INSTALLING THE OIL FILLER CAP .
Refer to INSTALLING ACOUSTIC COVER .
Refer to TOPPING UP/CHECKING FRONT AXLE TRANSMISSION OIL .
Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
