Secure the wiring harness for the EPS on the front axle support
Secure the wiring harness for the EPS on the front axle support

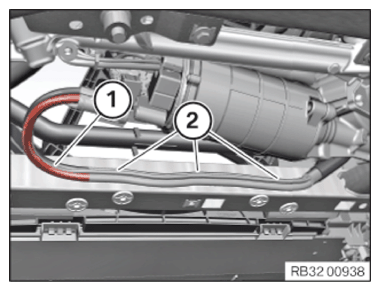

Position the wiring harness of the EPS (1) on the front subframe.
Secure the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

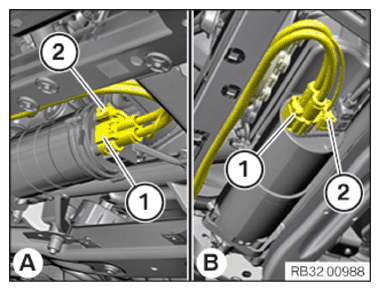

Version A:
Connect connectors (1) and (2) and lock.
Version B:
Connect connectors (1) and (2) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Position the wiring harness of the EPS (1) on the front subframe.
Secure the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Version A:
Connect connectors (1) and (2) and lock.
Version B:
Connect connectors (1) and (2) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
