Attaching the left and right tension struts on the swivel bearing

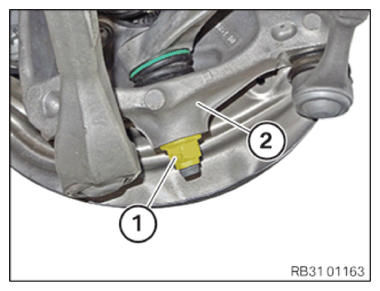

Securing tension strut on swivel bearing

• Position the tension strut on the swivel bearing (2).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  NOTE: Counter-hold at the Torx socket.
  TIGHTENING TORQUE SPECIFICATION



  Tension strut to swivel bearing
  M14 Replace nut.	tightening torque  175 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
