Installing starter motor

Precondition

Acoustic cover of the oil pan has been removed.

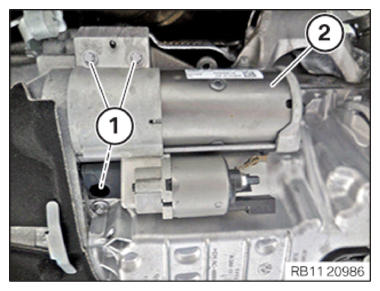

• Insert and install the starter motor (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Starter motor to crankcase
  M8x60	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the starter motor (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Starter motor to engine
  M8X60	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
