Attaching the left and right wishbone on the swivel bearing

NOTE: Description is for left component only. Procedure on the right side is identical.

Attaching the wishbone on the swivel bearing

NOTE: TECHNICAL INFORMATION
Otherwise, the rubber grommet can be damaged. The components must not be in contact.

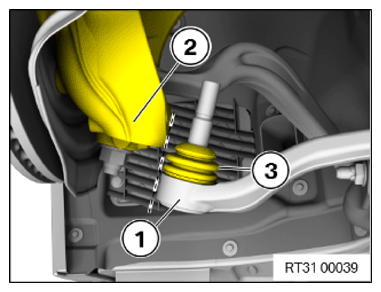

Make sure that the rubber grommet (3) on the bottom wishbone (1) is not damaged by the swivel bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

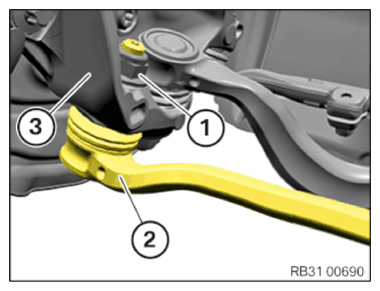

Position the wishbone (2) on the swivel bearing (3).
Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUE SPECIFICATION

Wishbone to swivel bearing
M14 Replace nut.	tightening torque 175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
