Take engine out of installation orientation
- Lower the engine by turning the spindle 2 361 506 (00 6 103)
until the engine is completely in contact with the
engine mounts.
- Feed out the special tool 0 490 579 (11 0 070) at the special tool 2 459 012 and set aside.
- Feed out the special tool 0 490 579 (11 0 070)
at the engine mounting bracket (1)
at the rear and set aside.NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person. - Remove the engine bridge (1)
with the help from another person.
- Tighten the screw (1)
of the right
engine mount with a standard tool from the top.TIGHTENING TORQUE SPECIFICATION
Engine mount to engine support bracket M12 tightening torque 100 Nm - Lay out all special tools and standard tools.
Number Description 1 Standard torque wrench 2 External Torx socket E14 3 Reversible ratchet - Tighten the screw (1)
of the left
engine mount with standard tools (2)
.TIGHTENING TORQUE SPECIFICATION
Engine mount to engine support bracket M12 tightening torque 100 Nm - Release the special tool 2 413 317
and remove the steering shaft (1)
from the coolant line (2)
.
- Guide in and position the coolant line (2) .
- Fasten expanding rivet (1)
.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATION
Coolant line to body M6 tightening torque 8 Nm - Clean the screw threads to remove all residues of screw locking agent.

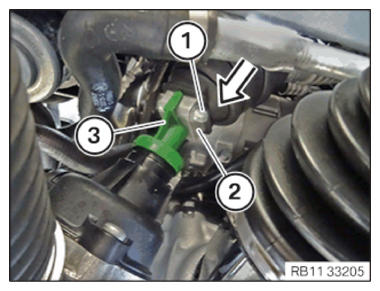

- Slide the steering shaft (2) in arrow direction on to the steering gear (3) .
- Replace the clamping bolt (1)
.
Parts: Clamping bolt
- Tighten the clamping bolt (1)
.TIGHTENING TORQUE SPECIFICATION
Universal joint to steering box M8
Recut screw thread. Replace clamping bolt. No retorque permitted!tightening torque 28 Nm - Loosen the screws (1) from the special tool 2 459012 .
- Guide out and remove the special tool 2 459 012
on the cylinder head.
Follow-up work
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE SIDE PANEL SEAL .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
