Attaching the right and left output shaft onto the wheel bearing

NOTE: Perform the steps on the left and right side.

Fasten the output shaft on the wheel bearing

NOTE: TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.

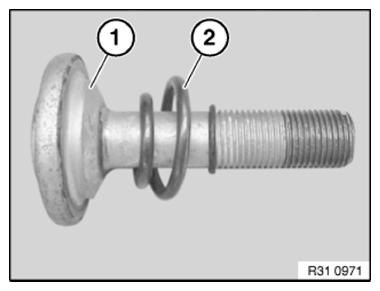

Replace the collar screw (1) and compression spring (2).
Parts: Collar screw and compression spring
Note installation position of compression spring (2).
Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

Courtesy of BMW OF NORTH AMERICA, INC.

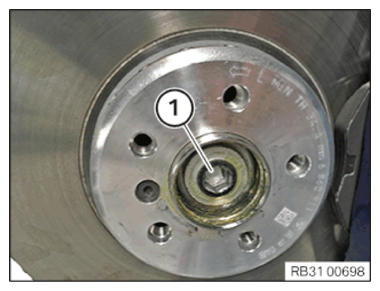

Hand-tighten the collar screw (1) with the compression spring.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION

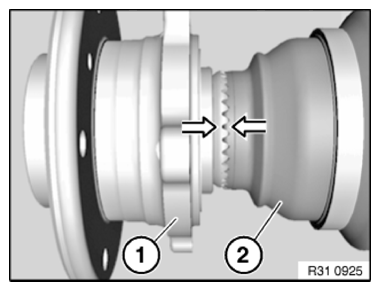

The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
Press brake pedal.

Tighten the collar screw.

TIGHTENING TORQUE SPECIFICATION

Output shaft to wheel bearing
M16 Replace collar screw and spring.	Joining torque	210 Nm
M16 Replace collar screw and spring.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
