Securing the tie rod on the left and right of the swivel bearing

Securing the tie rod on the swivel bearing

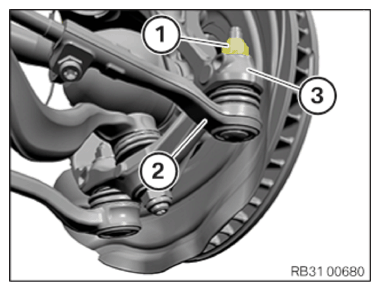

• Position the track rod (2) on the swivel bearing (3).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1). If necessary, counter support at the Torx socket.
  TIGHTENING TORQUE SPECIFICATION



  Tie rod end to swivel bearing
  M14 Replace nut.	Tightening torque	165 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
