Install engine

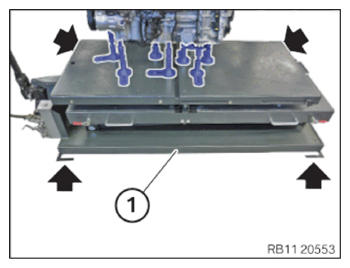

• Position the lifting table (1) with the engine under the vehicle.

  The marks made during removal (arrows) on the workshop floor are used as positioning aid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly  .
  Danger! Immobilization period-threatening injuries!

  • Observe safety instructions on raising the vehicle using a vehicle hoist.
  • For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lower the vehicle carefully  and if necessary, correct  the positioning of the lifting table.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission mounting
  M10 Replace screws.	Joining torque	40 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

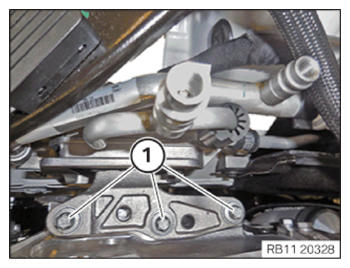

• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Right engine mount to cylinder head
  M10 Replace screws.	Joining torque	40 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly  .
  Danger! Immobilization period-threatening injuries!

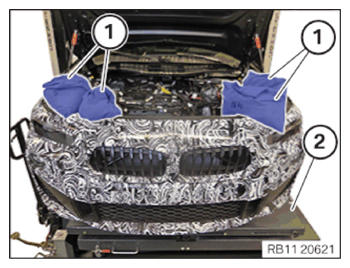

  • Ensure there is a specific weight compensation on the car.
• Take weight compensation (1) off of vehicle.
• Lower the lifting table (2) and set aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the ground strap (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Ground strap to transmission
  M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

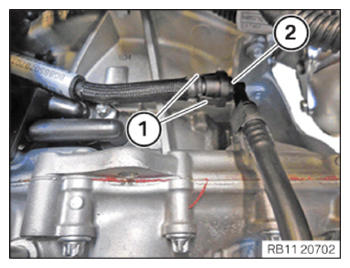

• Connect the vacuum line (2) and lock.
• Ensure that locks (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

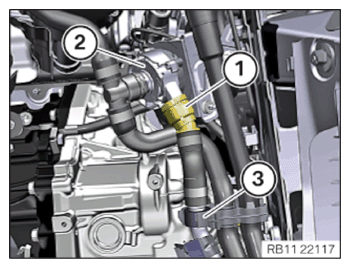

• Insert the coolant line (1) in the holder (3) and install it.
• Insert the coolant line (1) in the auxiliary coolant pump (2) and lock it.

  Make sure that the coolant line (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the wiring harness section (3) and position.
• Secure clamps (2).
• Connect connectors (1) and lock.
• Make sure the connector (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide out and remove the battery tray (4).
• Insert and install the coolant line (2) on the battery tray (4).
• Secure clamps (1).
• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Battery tray
  M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the battery positive terminal (2) and auxiliary terminal for jump starting (3).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Positive battery cable to positive battery terminal
  M8	Tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install coolant line (1).
• Make sure that the coolant line (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

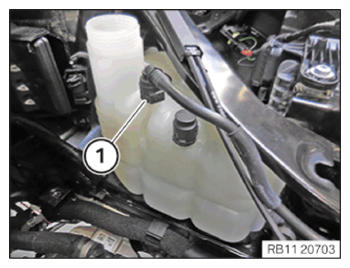

• Connect and lock coolant line (1).
• Make sure that the coolant line (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

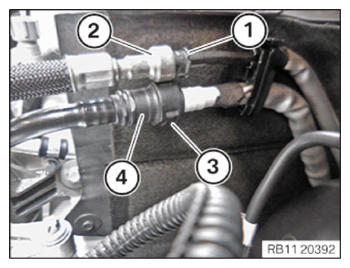

• Connect and lock coolant line (2).
• Make sure that the coolant line (2) engages audibly.
• Connect connectors (1) and lock.
• Make sure the connector (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

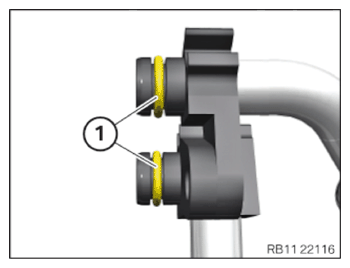

• Replace seals (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

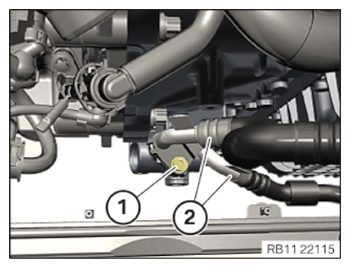

• Connect transmission oil lines (2).
• Tighten the bolt (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil line to transmission
  M 8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide out and remove special tools 0 496 565 (13 5 160) and 0 496 568 (13 5 162)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the tank vent line (4).
• Make sure that the lock (3) snaps in audibly.
• Guide the fuel delivery line (2) in and install.
• Make sure that the lock (1) snaps in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

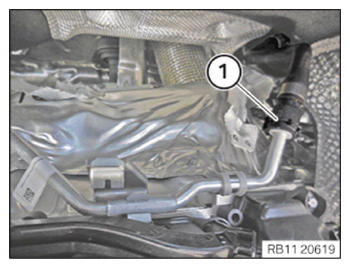

• Connect and lock coolant line (1).
• Make sure that the coolant line (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

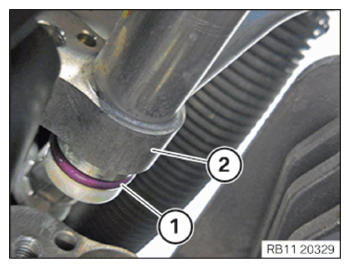

• Use standard tools to guide out and remove the coolant lines (2) and air conditioning compressor.
• Replace sealing ring (1).

  Parts:  Sealing ring

• Insert and install the sealing ring (1) on the refrigerant line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the coolant lines (3).
• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Refrigerant lines to air-conditioning compressor
  M8 Replace sealing rings.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.
• Make sure the connector (1) engages audibly.
• Open the weld seam (1) with a conventional tool.
• Remove ribbon clamp (2).
• Replace the (2) ribbon clamp.

  Parts:  Ribbon cable clamp

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the ribbon clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.
