Securing the mounted part on the front axle support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

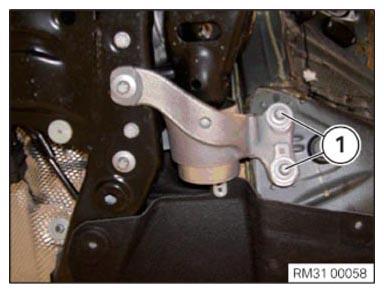

Replace bolts (1) .
Parts: Bolts

Tighten the bolts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Holder, wishbone rubber mount, to body
M10 screw Replace screw.	Joining torque	56 Nm
M10 screw Replace screw.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

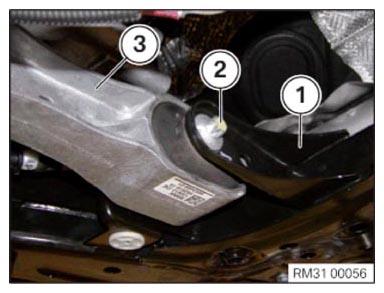

Position the engine support (3) at the front axle support (1) .

Tighten down bolt (2) .

TIGHTENING TORQUE SPECIFICATIONS

Holder with rubber mount to front axle support
M12 screw	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

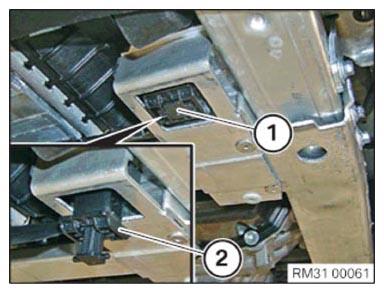

Position lock (2) .
Lock safety catch (1) of the lock (2) from the holder for the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

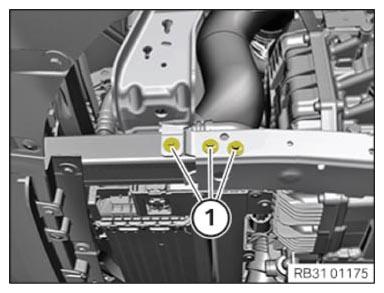

Tighten the bolts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Bottom deformation element to adapter plate for front axle support
Screw	tightening torque	11.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

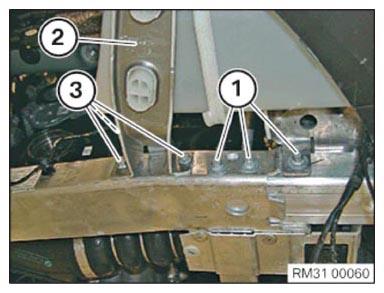

Tighten the bolts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Bottom deformation element to adapter plate for front axle support
Screw	tightening torque	11.8 Nm

Position the holder for the washer fluid reservoir (2) .
Tighten the bolts (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Washer fluid reservoir holder to adapter plate of front axle support
Screw	tightening torque	10 Nm
