Attaching connector at steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- To connect the connector (see the following step):
Connect the connector with the right hand.

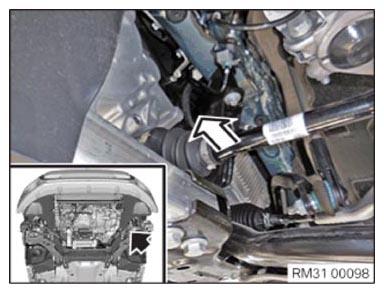

The connectors can be accessed via the left output shaft.

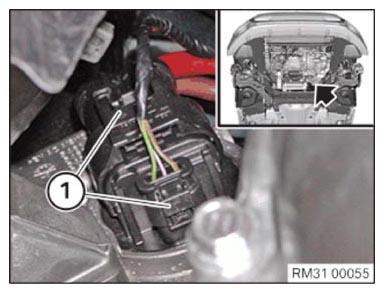

- Connect and lock connector (arrow) (1)
with the steering gear.

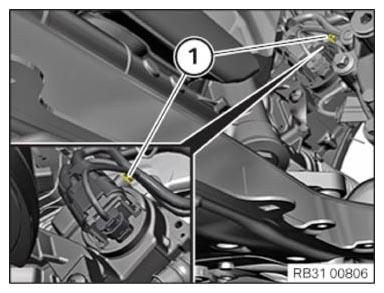

- Fasten the wiring harness (1) on the steering gear.
If installed: Fastening the connector with the front axle support

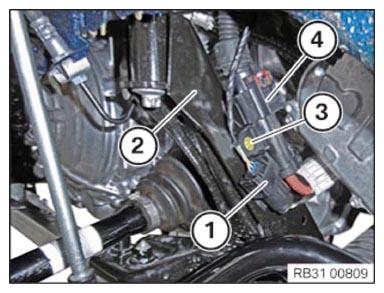

- Position the connector (4) on the front axle support (2) .
- Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS
Holder to front axle support Oval-head screw
TS5 x 16tightening torque 2.6 Nm - Fasten the connector (1) on to the front axle support (2) .
