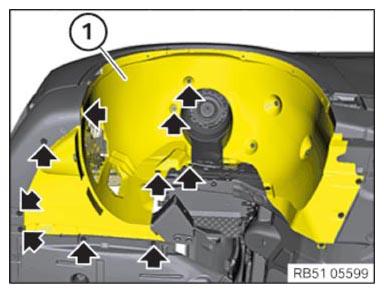

Partially install the front wheel arch cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Guide the wheel arch cover (1) in.
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Screw | Tightening torque | 2.5 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Plastic nut | Tightening torque | 3 Nm |

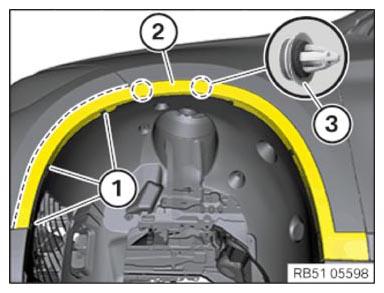

Partly install the front wheel arch trim
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Check the clips (3) for damage and replace where required.
The clips (3) must not be damaged or missing.
- Feed in wheel arch trim (2) and engage on the clips (3).
- Engage wheel arch trim (2) into the latch mechanisms on the bumper panel.
- Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .
