Install fan cowl with electric fan
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
- Feed the guides (arrows) of the fan cowl (1) into the charge air cooler.

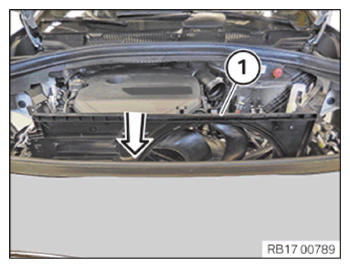

- Feed in and install the fan cowl (1) in the direction of the arrow.
- Lock the left and right locks (arrows).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Fan cowl on radiator | ||
|---|---|---|
| M6X12 | tightening torque | 6 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure clamps (2).
- Thread in and install coolant line (3).
- Guide in and install the seal (1) at the radiator.
Follow-up work
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
