Install the cross-member with torsion struts
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

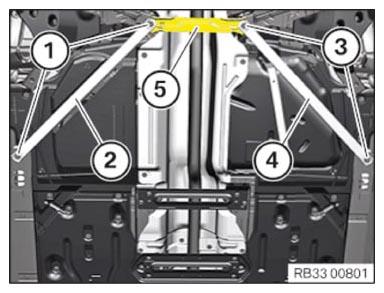

- Insert and install the cross-member (5) .
- Thread in torsion strut (4) at right and install.
- Replace screws (3)
.
Parts: Screws
- Tighten the screws (3)
.TIGHTENING TORQUE SPECIFICATIONS
Cross-member/torsion strut on rear axle support/mount M12x48
Replace screws.Tightening torque 100 Nm Angle of rotation 90° - Guide in and install the left torsion strut (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cross-member/torsion strut on rear axle support/mount | ||
|---|---|---|
| M12x48 Replace screws. |
Tightening torque | 100 Nm |
| Angle of rotation | 90° | |
