Partially installing the left output shaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- With automatic transmission only:

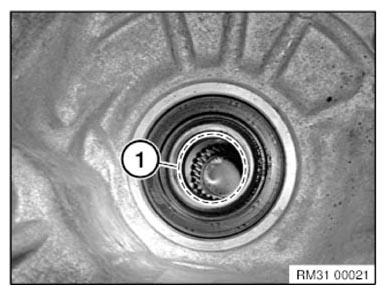

- Lever out the O-ring (1) .
- Replace O-ring (1)
.
Parts: O-ring
- Insert the new O-ring (1)
.
- Do not mix up the circlips.

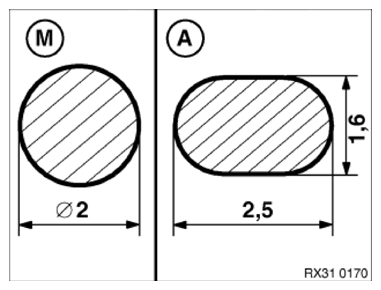

Different types of output shafts have been fitted:
- M: mechanical transmission
- A: automatic transmission

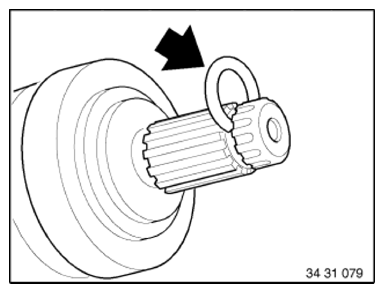

- Replace the circlip (arrow).

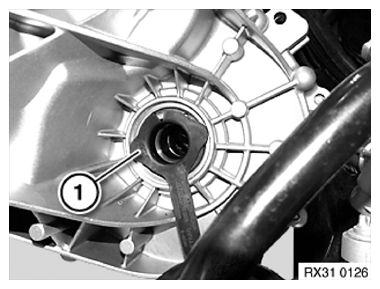

- Insert the installation protection ring (1) into the radial shaft seal.
- Make sure the tool fits over the lip of the radial shaft seal to avoid damaging the sealing ring when inserting the output shaft.

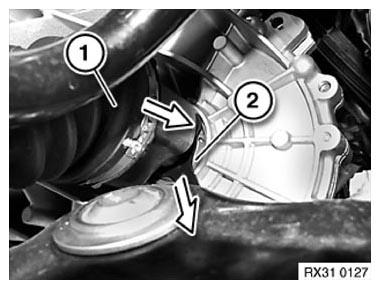

- Insert the output shaft (1) in the transmission.
- Manual transmission only: Pull on the handle to remove the installation protection ring (2) and dispose of it.
- Slide the output shaft (1)
up to the stop in the transmission.
The output shaft (1) must snap-in audibly.
- Check for secure seat by levering.
