Securing the steering shaft at the bottom on the steering gear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

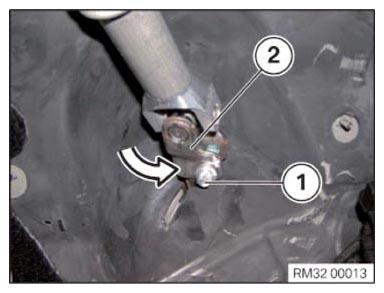

Clean the screw thread in the universal joint (2) from the residues of screw locking agent.
Swivel the universal joint (2) in the arrow direction to the steering gear.
Replace the screw (1) .
Parts: Screw

Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Lower steering shaft to steering gear
M10 Clean screw thread and remove remains of screw locking agent. Replace screw.	Tightening torque	28 Nm

NOTE: The following step (s) must be performed if the listed component (s) is/are installed.

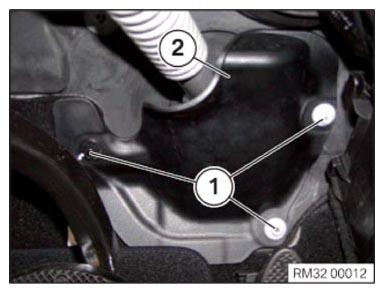

Position the cover (2) on the steering column.
Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Steering column cover panel to firewall
Plastic nut	Tightening torque	3 Nm
