Remove/install engine with front axle carrier - AR01.10-P-2500OGE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 212.08/09/28/29, 218.39

Shown on model 204.0/2

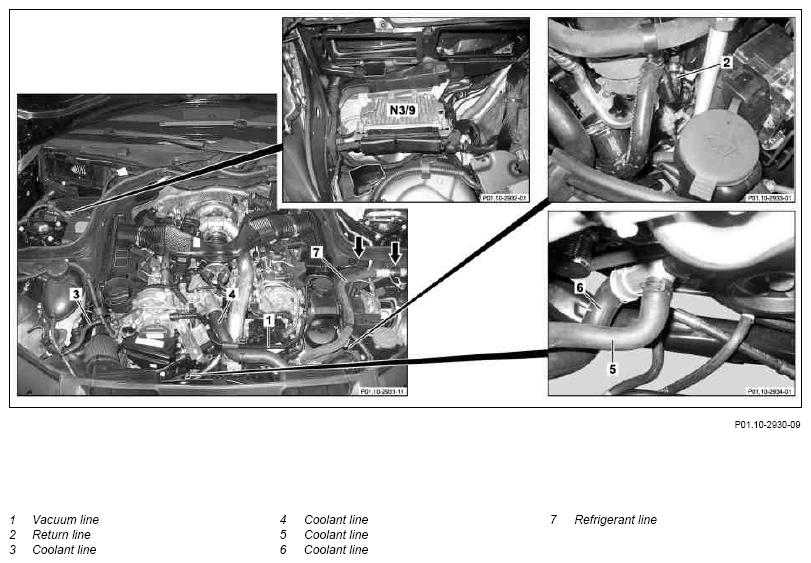

Fig 1: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 204.0/2
G10240498Courtesy of MERCEDES-BENZ USA

Shown on model 204.9

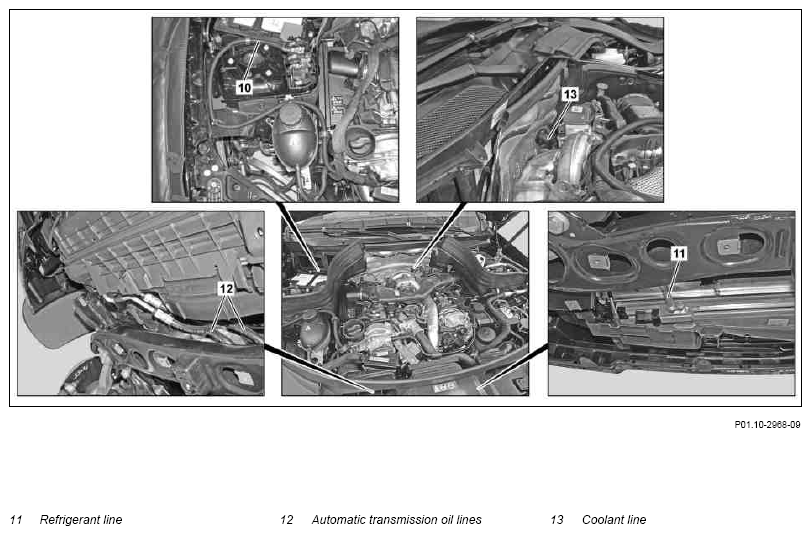

Fig 2: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 204.9
G10240499Courtesy of MERCEDES-BENZ USA

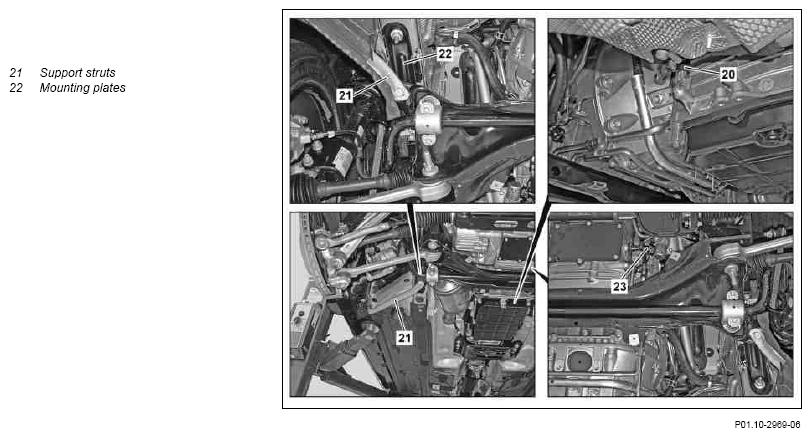

Fig 3: Support Struts And Mounting Plates
G10240500Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
NOTES Notes on AIRmatic   AH32.22-P-1000-02EW
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Relieve all pressure in front suspension struts with diagnostic system ENGINE 642 in MODEL 212.08/09/28/29, 218.39
with CODE 489 (AIRMATIC)

REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
2 Deactivate easy entry/exit feature ENGINE 642 in MODEL 212.08/09/28/29, 218.39
with CODE 275 (Memory package)

3 Move front wheels to straight-ahead position and secure steering wheel NOTES
The steering wheel must not be turned when detaching steering coupling.
Otherwise the clock spring contact will be destroyed.

SPECIAL TOOL Retainer device Figure
4 Set gear selector switch to position "N" and release parking brake
5 Detach ground line from battery   AR54.10-P-0003EW
6 Secure vehicle on vehicle lift   AR00.60-P-0100EWS
7 Remove cold air suction bridge   AR20.40-P-5050EW
8 Suction refrigerant out of air conditioning   AR83.30-P-1760CW
9 Disconnect wiring harness in engine compartment
10 Disconnect vacuum line (1) at connecting point (arrow)   AR43.10-P-0355EW
11 Remove right and left air filter housing   AR09.10-P-1150SXI
12 Empty power steering expansion reservoir ENGINE 642 in MODEL 212.08/09/28/29
SPECIAL TOOL Hand pump Figure
13 Remove return line (2) on power steering expansion reservoir
14 Remove return line (2) on P/S cooler
15 Disconnect refrigerant line (7) at connecting point (arrow) SPECIAL TOOL Detaching tool Fig 4
16 Fasten radiator to radiator crossmember using cable ties
17 Remove coolant lines (3, 4, 5, 6)   AR09.41-P-1311-01AL
18 Remove coolant line (13) at firewall   AR09.41-P-1311-01AL
19 Remove charge air hose on engine charge air duct downstream of charge air cooler and set aside   AR09.41-P-1311-01AL
20 Remove charge air hose upstream of charge air cooler
21 Remove front wheels
REFER TO MAINTENANCE AP40.10-P-4050EW
22 Remove bottom sections of soundproofing   AR94.30-P-5300EW
23 Disconnect wiring harness on transmission and underfloor
24 Remove refrigerant line (11) on condenser and close off openings with stop plugs TORQUE SPECIFICATION
ENGINE 642 in MODEL 212.08/09/28/29, 218.39
*BA83.30-P-1022-01A
SPECIAL TOOL Record plug Figure
25 Drain coolant at radiator   AR20.00-P-1142OGE
26 Remove oil lines for A/T (12) at the front connecting points ENGINE 642 in MODEL 212.08/09/28/29, 218.39 with TRANSMISSION 722.9
AR27.55-P-0600CWX
27 Remove exhaust system holder from transmission and frame floor assembly TORQUE SPECIFICATION Bolt, exhaust system bracket to transmission *BA49.10-P-1023-01AE
TORQUE SPECIFICATION Bolt, exhaust system to main floor panel *BA49.10-P-1025-01AE
28 Disconnect exhaust system at diesel particulate filter connecting point at exhaust pipe   AR49.10-P-7100EWI
29 Loosen right and left hand underfloor paneling
30 Remove center strut on frame floor assembly
31 Remove heat shield im the area of the propeller shaft center support bearing
32 Detach propeller shaft at transmission   AR41.10-P-0050EW
33 Disconnect steering coupling   AR46.10-P-8000EW
34 Remove the right bracket at soundproofing bottom section
35 Remove brake caliper with from brake caliper support steering knuckles and fasten with attached lines to suspension strut ENGINE 642 in MODEL 212.08/09/28/29, 218.39divided floating caliper brake AR42.10-P-0070EWC
ENGINE 642 in MODEL 212.08/09/28/29undivided 1-piston floating caliper brake AR42.10-P-0070EWB
ENGINE 642 in MODEL 212.08/09/28/29, 218.394-piston fixed-caliper brake AR42.10-P-0070EWA
36 Disconnect electrical connections from rpm sensors at front left and right and front right brake pad contact sensor and unclip electrical lines from the brackets   AR33.10-P-0100-06CW
37 Remove front level sensor at strut rod ENGINE 642 in MODEL 212.08/09/28/29, 218.39
with CODE 488 (Steel/air suspension) or with automatic headlamp range adjustmentENGINE 642 in MODEL 212.08/09/28/29, 218.39
with CODE 489 (AIRMATIC) or with automatic headlamp range adjustment

38 Remove torsion bar linkage from torsion bar TORQUE SPECIFICATION Nut, link rod to stabilizer bar *BA32.20-P-1001-02P
39 Remove suspension struts from steering knuckles ENGINE 642 in MODEL 212.08/09/28/29, 218.39
without CODE 489 (AIRMATIC)
AR32.25-P-1017EW
ENGINE 642 in MODEL 212.08/09/28/29, 218.39
with CODE 489 (AIRMATIC)
AR32.25-P-1017EWA
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
40 Remove fuel lines from fuel pipes and close off openings with stop plugs SPECIAL TOOL Record plug Figure
41 Support front axle carrier with lifting platform and aggregate mount and secure whole engine transmission unit against slipping and falling down with a tensioning strap
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform WS01.00-P-0091A
IMPORTANT When doing so ensure that mounting plates are evenly aligned.
42 Remove rear engine crossmember from frame floor assembly IMPORTANT The rear engine crossmember remains on transmission.
Bolt, rear engine support to frame floor assembly *BA22.10-P-1005-03E
43 Remove support struts (21) from front axle carrier and frame floor assembly TORQUE SPECIFICATION Fixing of support (strut) *BA33.10-P-1002-01M
44 Remove screw/bolts on front axle carrier from longitudinal members
NOTES Notes on bolted connections with self tapping screws AH00.00-P-0007-01SF
INSTALLATION IMPORTANT Replace screw/bolts.
TORQUE SPECIFICATION Bolt, front axle carrier to longitudinal member *BA33.10-P-1001-01M
45 Lower engine-transmission unit with front axle carrier NOTES
The engine must not lie on the vehicle. Damage can occur to lines and detachable parts otherwise.

46 Install in the reverse order
INSPECT Check
47 Check and correct transmission oil level ENGINE 642 in MODEL 212.08/09/28/29, 218.39 with TRANSMISSION 722.9
AR27.00-P-0270SYZ
48 Fill power steering pump and bleed ENGINE 642 in MODEL 212.08/09/28/29
AR46.30-P-0010EW
49 Check engine oil level and correct
REFER TO MAINTENANCE AP18.00-P-0101EWO
50 Perform wheel alignment check   AR40.20-P-0200EW
51 Read out fault memory using the diagnostic system and delete
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
52 Carry out an engine test run, checking the engine for proper operation and leaktightness
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 212 MODEL 218
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly M10x22 Silver Nm 70 70
Black Nm 55 55
M10x24 Black Nm - -
M10x38 Nm - -
FRONT AXLE TORSION BAR

Number Designation MODEL 212 MODEL 218
BA32.20-P-1001-02P Nut, link rod to stabilizer bar Nm 98 98
FRONT AXLE CARRIER

Number Designation MODEL 212 MODEL 218
BA33.10-P-1001-01M Bolt, front axle carrier to longitudinal member Nm 180 180
FRONT AXLE CARRIER

Number Designation MODEL 212 MODEL 218
BA33.10-P-1002-01M Fixing of support (strut) Nm 110 110
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 212 ENGINE 642, 651 in MODEL 218
BA49.10-P-1023-01AE Bolt, exhaust system bracket to transmission Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 212 ENGINE 642, 651 in MODEL 218
BA49.10-P-1025-01AE Bolt, exhaust system to main floor panel M8 Nm 20 20
M10 Nm 50 50
AIR CONDITIONING

Number Designation MODEL 212 MODEL 218
BA83.30-P-1022-01A Screw/bolt, line to condenser Nm 8 8
Fig 4: Identifying Detaching Tool (211 589 00 63 00)
G10240501Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Retainer Device (129 589 01 21 00)
G10240502Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Hand Pump (210 589 00 71 00)
G10240503Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Record Plug (129 589 00 91 00)
G10240504Courtesy of MERCEDES-BENZ USA
