Remove/install the suspension strut - AR32.25-P-1017EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 without CODE 489 (AIRMATIC)

MODEL 218 without CODE 489 (AIRMATIC)

Shown on vehicle except code M005 (4MATIC), except CODE 460 (Canada version) and except CODE 494 (USA version)

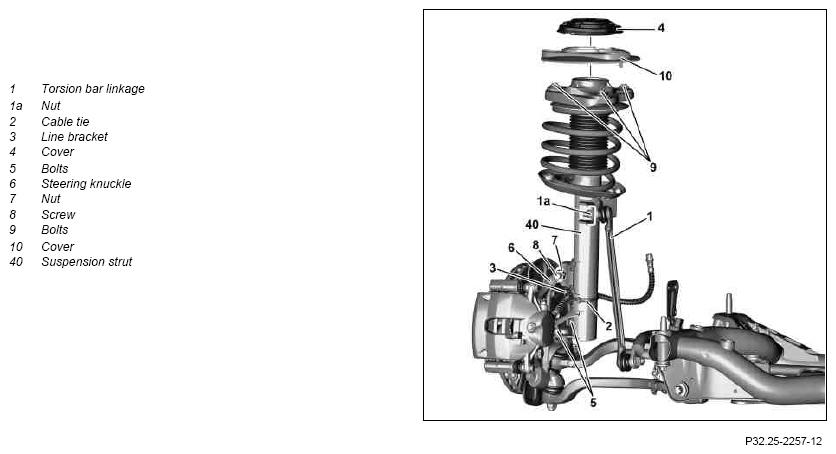

Fig 1: Suspension Strut Remove/Install Components - Shown On Vehicle Except Code M005

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with CODE M005 (4MATIC), except CODE 460 (Canada version) and except CODE 494 (USA version)

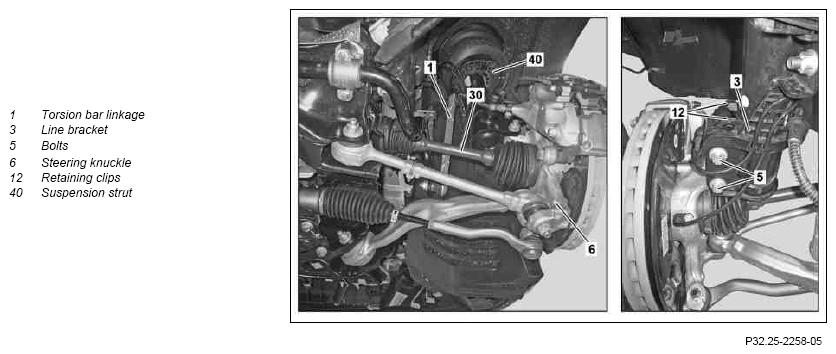

Fig 2: Suspension Strut Remove/Install Components - Shown On Vehicle With Code M005

Courtesy of MERCEDES-BENZ USA

MODEL 212.0 as of model year 2015 except CODE M005 (4MATIC) with CODE 460 (Canada version) or with CODE 494 (USA version)

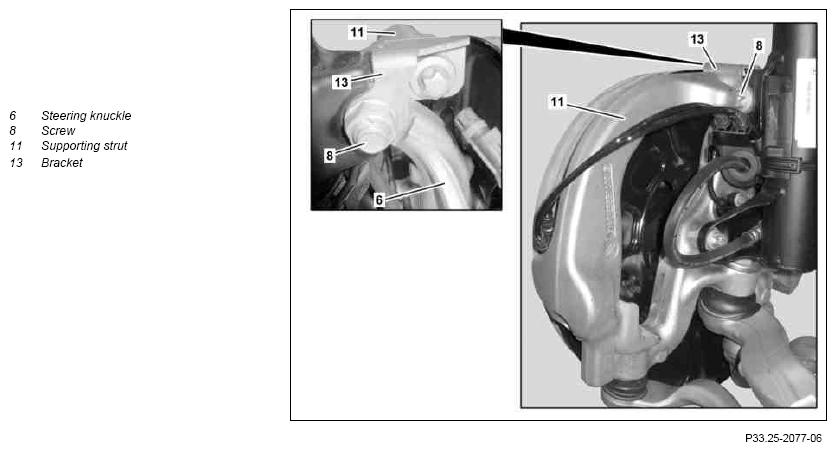

Fig 3: Suspension Strut Remove/Install Components - Shown On Model 212.0 As Of Model Year 2015 Except Code M005

Courtesy of MERCEDES-BENZ USA

MODEL 212.0 as of model year 2015 with CODE M005 (4MATIC) with CODE 460 (Canada version) or with CODE 494 (USA version)

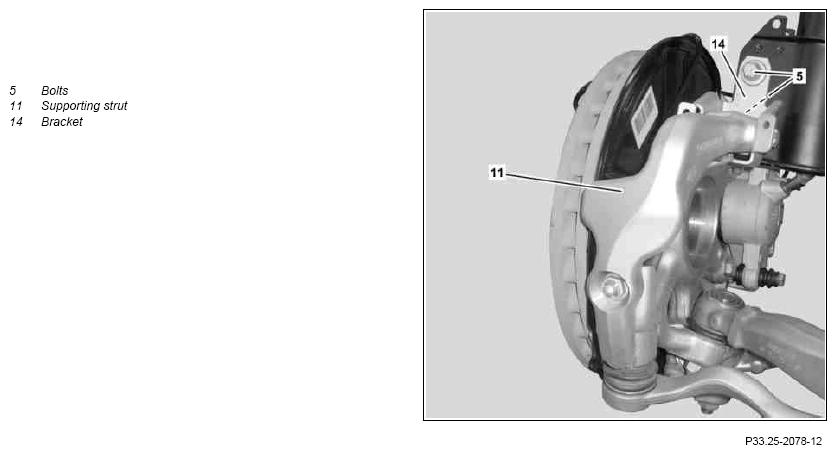

Fig 4: Suspension Strut Remove/Install Components - Shown On Model 212.0 As Of Model Year 2015 With Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove left or right front wheel
			AP40.10-P-4050EW
2	Unscrew nut (1a) and remove torsion bar linkage (1) from suspension strut (40)	Counterhold ball stud using internal TORX.
2		Nut, link rod to suspension strut	*BA32.20-P-1002-02P
3	Unclip electrical line of right front brake wear sensor from right line bracket (3)	When removing the right suspension strut (40).
4	Remove cable tie (2) from suspension strut (40)	MODEL 212 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 218 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) Observe installation position and replace cable tie (2).
4	Remove cable tie (2) from suspension strut (40)	Pliers	Fig 5
5.1	Unclip line bracket (3) from suspension strut (40) and place to one side	MODEL 212 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 218 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC)
5.2	Open retaining clip (12) and remove line bracket (3) from suspension strut (40)	MODEL 212 with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) MODEL 218 with CODE M005 (4MATIC) without CODE 489 (AIRMATIC)
6	Remove supporting strut (11).	MODEL 212.0 as of model year 2015 with CODE 460 (Canada version) without CODE 489 (AIRMATIC) MODEL 212.0 as of model year 2015 with CODE 494 (US version) without CODE 489 (AIRMATIC)
		MODEL 212.0 as of model year 2015 with CODE 460 (Canada version) with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) MODEL 212.0 as of model year 2015 with CODE 494 (US version) with CODE M005 (4MATIC) without CODE 489 (AIRMATIC)	AR33.25-P-0001EWX
		MODEL 212.0 as of model year 2015 with CODE 460 (Canada version) without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 212.0 as of model year 2015 with CODE 494 (US version) without CODE 489 (AIRMATIC) without CODE M005 (4MATIC)	AR33.25-P-0001EW
7	Remove bolts (5) from steering knuckle (6)	MODEL 212 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 218 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC)
7	Remove bolts (5) from steering knuckle (6)	Model 212, 218 except code M005 (4MATIC)	*BA32.25-P-1002-04M
8	Secure steering knuckle (6) to prevent it from tilting away	The brake hose and electrical lines may not be pulled. Otherwise, the brake hose and the electrical lines may be damaged.
9.1	Unscrew nut (7) and pull out bolt (8)	MODEL 212 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 218 without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) Replace bolt (8). Tighten bolt (8) and nut (7) only after installation of supporting strut (11). MODEL 212.0 as of model year 2015 with CODE 460 (Canada version) without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) MODEL 212 as of model year 2015 with CODE 494 (US version) without CODE 489 (AIRMATIC) without CODE M005 (4MATIC) Remove bolt (8) together with bracket (13).
9.1	Unscrew nut (7) and pull out bolt (8)	Model 212, 218 except code M005 (4MATIC)	*BA32.25-P-1001-04M
9.2	Remove bolts (5) from steering knuckle (6)	MODEL 212 with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) MODEL 218 with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) MODEL 212.0 with CODE 460 (Canada version) with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) MODEL 212.0 with CODE 494 (US version) with CODE M005 (4MATIC) without CODE 489 (AIRMATIC) Remove bracket (14).
9.2	Remove bolts (5) from steering knuckle (6)	MODEL 212, 218 with code M005 (4MATIC)	*BA32.25-P-1005-04M
10	Remove cover (4) from suspension strut (40)
11	Remove bolts (9) from suspension strut tower	MODEL 212, 218	*BA32.25-P-1003-04M
12	Remove suspension strut (40)
13	Take off cover (10)	If installed. If a cover (10) is not fitted, then one must be retrofitted. The cover (10) is mounted to the upper spring cup.
	Check
14	Check suspension strut (40) for damage	If damage is present: ↓ Replace suspension strut (40).
15	Install in the reverse order
16	Perform wheel alignment check		AR40.20-P-0200EW
	Risk of injury caused by drilling gas-filled assemblies or components (noncombustible gases)	Wear safety glasses and a face mask.	AS00.00-Z-0006-01A
17	Dispose of damaged suspension strut (40)	If the removed suspension strut (40) is damaged and consequently has to be replaced.

FRONT AXLE TORSION BAR

Number	Designation		MODEL 212	MODEL 218
BA32.20-P-1002-02P	Nut, link rod to suspension strut	Nm	98	98

SUSPENSION STRUTS

Number	Designation				MODEL 212.00/02/03/04/05/0 61/065/072/073/095/0 98/13/14/15/162/165/19/20/22/23/24/25/26 1/265/272/273/298 except CODE 489, MODEL 212.074/075/077/274/275/277 except CODE 488/489	MODEL 212.074/075/077/274/275/277 with CODE 488, except CODE 489
BA32.25-P-1001-04M	Bolt, suspension strut to steering knuckle at top	M14X45	Stage 1	Nm	100	100
BA32.25-P-1001-04M	Bolt, suspension strut to steering knuckle at top	M14X45	Stage 2	∠°	90	90

SUSPENSION STRUTS

Number	Designation				MODEL 218.30/32/33/35/361/362/365/373/90/92/93/95/961/965/973 except CODE 489, MODEL 218.374/375/974/975 except CODE 488/489	MODEL 218.374/375/974/975 with CODE 488
BA32.25-P-1001-04M	Bolt, suspension strut to steering knuckle at top	M14X45	Stage 1	Nm	100	100
BA32.25-P-1001-04M	Bolt, suspension strut to steering knuckle at top	M14X45	Stage 2	∠°	90	90

SUSPENSION STRUTS

Number	Designation				MODEL 212.00/02/03/04/05/0 61/065/072/073/095/0 98/13/14/15/162/165/19/20/22/23/24/25/26 1/265/272/273/298 except CODE 489, MODEL 212.074/075/077/274/275/277 except CODE 488/489	MODEL 212.074/075/077/274/275/277 with CODE 488, except CODE 489
BA32.25-P-1002-04M	Bolt, suspension strut to steering knuckle at bottom	M12X20	Stage 1	Nm	70	70
			Stage 2		loosen	loosen
			Stage 3	Nm	100	100

SUSPENSION STRUTS

Number	Designation				MODEL 218.30/32/33/35/361/362/365/373/90/92/93/95/961/965/973 except CODE 489, MODEL 218.374/375/974/975 except CODE 488/489	MODEL 218.374/375/974/975 with CODE 488
BA32.25-P-1002-04M	Bolt, suspension strut to steering knuckle at bottom	M12X20	Stage 1	Nm	70	70
			Stage 2		loosen	loosen
			Stage 3	Nm	100	100

SUSPENSION STRUTS

Number	Designation		MODEL 212.00/02/03/04/05/0 61/065/072/073/095/0 98/13/14/15/162/165/19/20/22/23/24/25/26 1/265/272/273/298 except CODE 489, MODEL 212.074/075/077/274/275/277 except CODE 488/489	MODEL 212.067/08/090/091/093/094/097/099/167/168/211/267/28/291/293/294/297/299 except CODE 489, MODEL 212.076/092/276/292 except CODE 488/489
BA32.25-P-1003-04M	Screw/bolt, suspension strut to body	Nm	33	33

SUSPENSION STRUTS

Number	Designation		MODEL 218.30/32/33/35/361/362/365/373/90/92/93/95/961/965/973 except CODE 489, MODEL 218.374/375/974/975 except CODE 488/489	MODEL 218.367/368/391/393/394/397/967/968/991/993/994/997 except CODE 489, MODEL 218.376/392/976/992 except CODE 488/489
BA32.25-P-1003-04M	Screw/bolt, suspension strut to body	Nm	33	33

SUSPENSION STRUTS

Number	Designation				MODEL 212.067/08/090/091/0 93/094/097/099/167/1 68/211/267/28/291/29 3/294/297/299 except CODE 489, MODEL 212.076/092/276/292 except CODE 488/489	MODEL 218.367/368/391/393/394/397/967/968/991/993/994/997 except CODE 489, MODEL 218.376/392/976/992 except CODE 488/489
BA32.25-P-1005-04M	Bolt, suspension strut to steering knuckle	M14X70	Stage 1	Nm	120	120
BA32.25-P-1005-04M	Bolt, suspension strut to steering knuckle	M14X70	Stage 2	∠°	90	90

SUSPENSION STRUTS

Number	Designation				MODEL 218.376/392/976/992 with CODE 488
BA32.25-P-1005-04M	Bolt, suspension strut to steering knuckle	M14X70	Stage 1	Nm	120
BA32.25-P-1005-04M	Bolt, suspension strut to steering knuckle	M14X70	Stage 2	∠°	90

Fig 5: Identifying Pliers (164 589 01 37 00)

Courtesy of MERCEDES-BENZ USA
